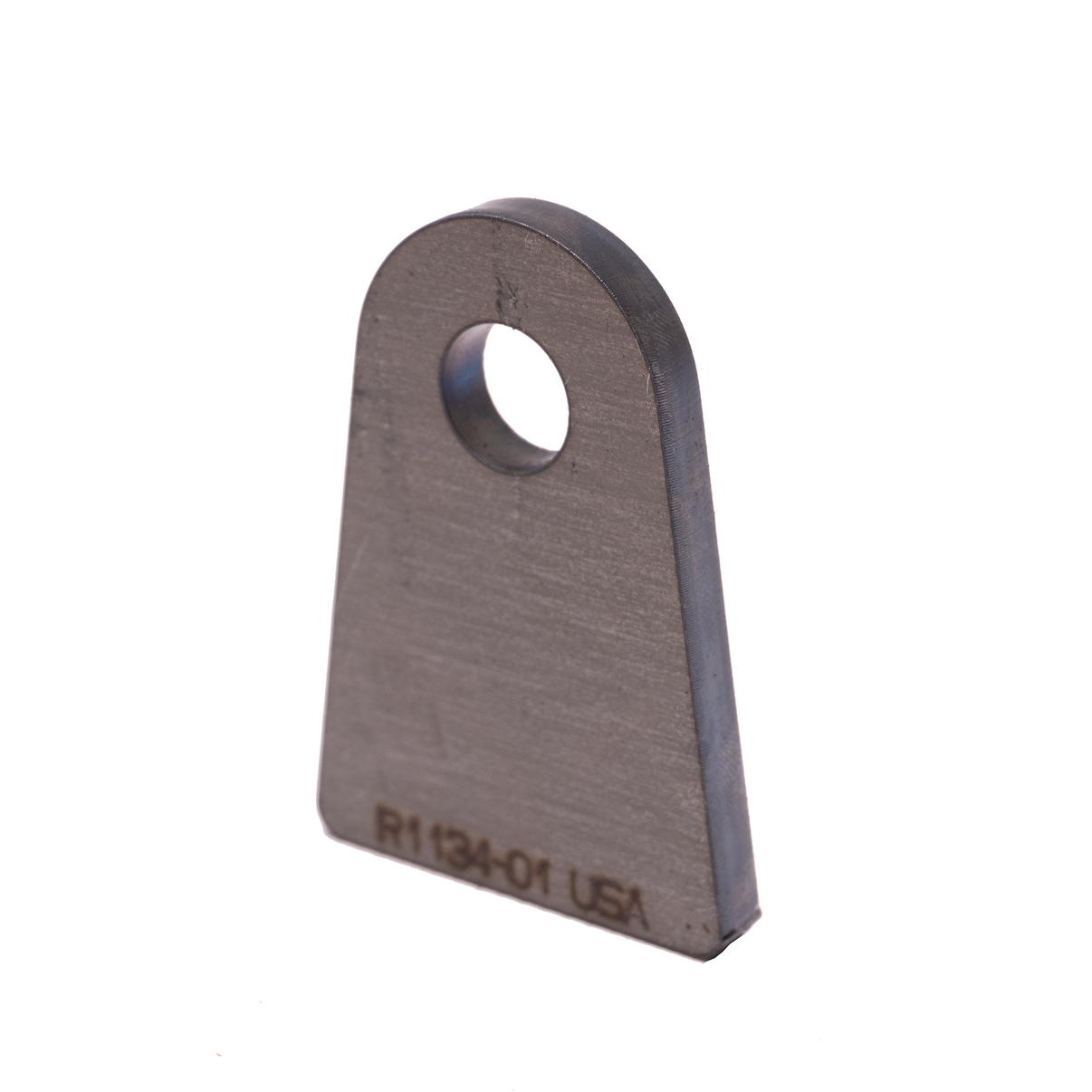

Flat-Weld Shock Tabs Weld-on 1/4" steel shock tabs with flat base These tabs provide a flat-bottom mounting solution for shock eyes on brackets, crossmembers, and axle trusses. Each tab measures...
These tabs provide a flat-bottom mounting solution for shock eyes on brackets, crossmembers, and axle trusses. Each tab measures 1.75" from bolt centerline to the mounting surface and uses a 1/2" bolt hole to fit common shock sleeves and hardware. They are CNC laser cut from 0.25" HR P&O steel for consistent fit and repeatable alignment across pairs.
Intended for welding to a flat surface, these tabs offer versatile placement and reliable clamping for shock bushings. Verify bolt length, misalignment spacers, and bushing width before tacking, then cycle the suspension to confirm clearance at full bump and droop. Finish with full perimeter welds and recheck hardware torque after initial shakedown.
Weld-on installation only; confirm clearance through full suspension travel before final welds. Use proper spacers for 1/2" hardware to avoid side loading, and recheck torque after the first test drive.
