Ford Dana 60 Rear Disc Brake Bracket Pair, 77-84

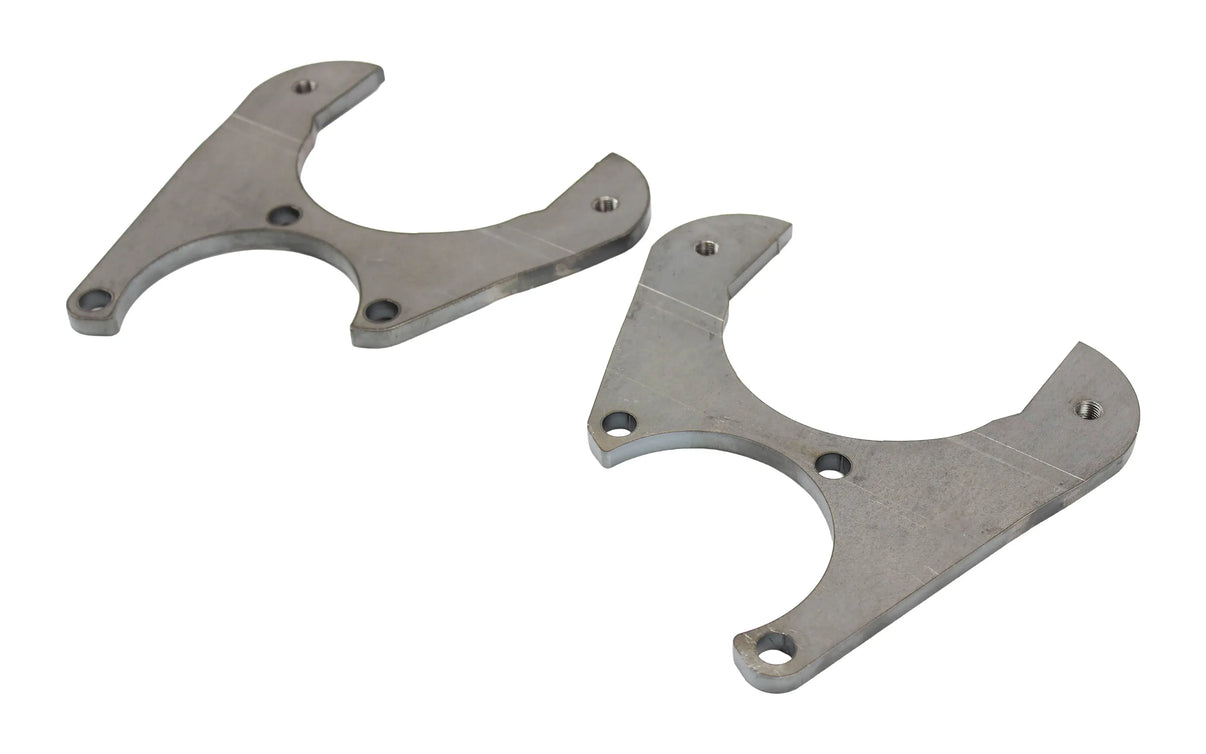

Ford Dana 60 Rear Disc Brake Bracket Pair (’77–’84)

Swap your rear drums for discs on early Ford Dana 60 axles with a proven bracket setup.

The early full-float Ford Dana 60 axles (1977–1984 F-Series) used different brakes and axle flanges than later models, so they need a specific disc bracket. These brackets target those years and may work on some newer D60s with the same flange style. E-Series axles typically require modification. Some versions have a larger flange diameter that won’t clear these brackets (radiused for 3-15/16"). Check your 4-bolt flange: if spacing is the same vertically and horizontally, you need the ’76-and-older kit.

Like all our disc brackets, these are cut from 3/8" plate for strength. They’re built around ’73–’87 Chevy ¾-ton 4x4 front rotors and calipers; you may need to open the rotor throat by about 0.10"—an easy job for a brake shop. Brackets mount inboard of the 4-bolt flange with the bend toward the wheel. Requires single steel wheels, minimum 15" diameter, maximum 4" backspacing. For single rear-wheel axles.

Key Features

• Part Number: R1336
• Fits 1977–1984 Ford Dana 60 full-float rear axles
• 3/8" thick steel construction
• Uses ’73–’87 Chevy ¾-ton 4x4 rotors & calipers
• Bracket radius: 3-15/16" (check flange size)
• Mounts inboard of 4-bolt flange; bend toward wheel
• Wheel requirement: 15" steel, ≤ 4" backspacing
• Driver: R1336-01 / Passenger: R1336-02

What's Included

• Driver-side rear disc brake bracket
• Passenger-side rear disc brake bracket

Recommended Parts

• GM Dual Bleeder Loaded Brake Calipers
• Cadillac El Dorado Caliper Set with Parking Brake Lever
• Caliper options: N4674 / N4673 (later years) or N4597 / N4596 (earlier years)
• Rotor: NAPA 4885677 (’73–’87 Chevy ¾-ton 4x4 Front)
• Brake hose: H86572

Note

Bolt-on installation. For full-float axles only — not for semi-float Dana 60s. Ensure wheel studs drop freely into the rotor; do not press studs in. If hub studs are oversized, drill rotor holes accordingly. Maintain at least 5/8" lug nut thread engagement once the wheel is mounted.
