Ford Super Duty 2005+ Coil Over Shock Brackets Simple, heavy-duty coilover shock mounts for 2005 and newer Ford Super Duty Dana 60 front axles. We designed these brackets to solve...
Simple, heavy-duty coilover shock mounts for 2005 and newer Ford Super Duty Dana 60 front axles.
We designed these brackets to solve a common challenge on the 2005+ Ford Super Duty Dana 60 front axle: limited tube space for mounting shocks on the driver side. On these axles, the factory coil spring perch is held down by a single bolt on the inner C, leaving little room for traditional mounting solutions. These coilover brackets give you a solid, weld-on answer to that problem.
Perfect for builds with 6" or more of lift, these axles are popular swaps into everything from Jeeps to Duramax-powered rigs thanks to their strong ball joints and better road manners compared to kingpin axles. Each bracket is cut from 1/4" steel, sized for coilovers with a 1.5" mounting width, and can be easily adapted for narrower coilovers with spacers. Sold in pairs and supplied with Grade 8 hardware for a secure fit.
Key Features
Part Number: R2287
Fits 2005+ Ford Super Duty Dana 60 front axles
1/4" thick steel construction
1/2" bolt hole, 1.5" ID spacing (adaptable with spacers)
Solves limited shock mounting space on driver side
Works best with 6" or more suspension lift
Sold in pairs
Includes Grade 8 bolts with lock washers
Welding required

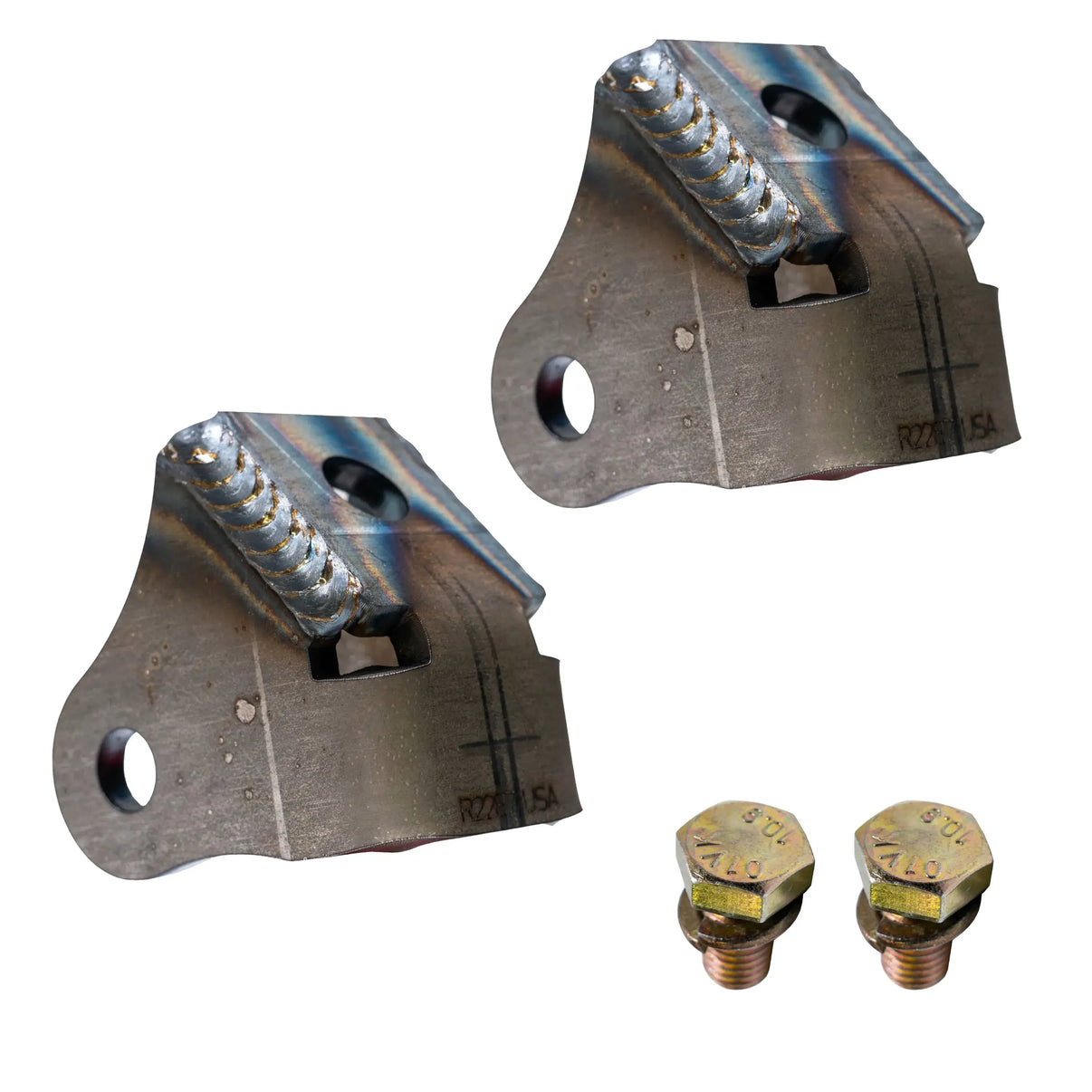

What's Included
Driver-side coilover shock bracket
Passenger-side coilover shock bracket
Grade 8 bolts with lock washers
Note
Welding required. Designed for coilover shocks with 1.5" spacing, but can be adapted for narrower coilovers with spacers. Best suited for vehicles with 6" or more of lift. Verify fitment before final welding.
