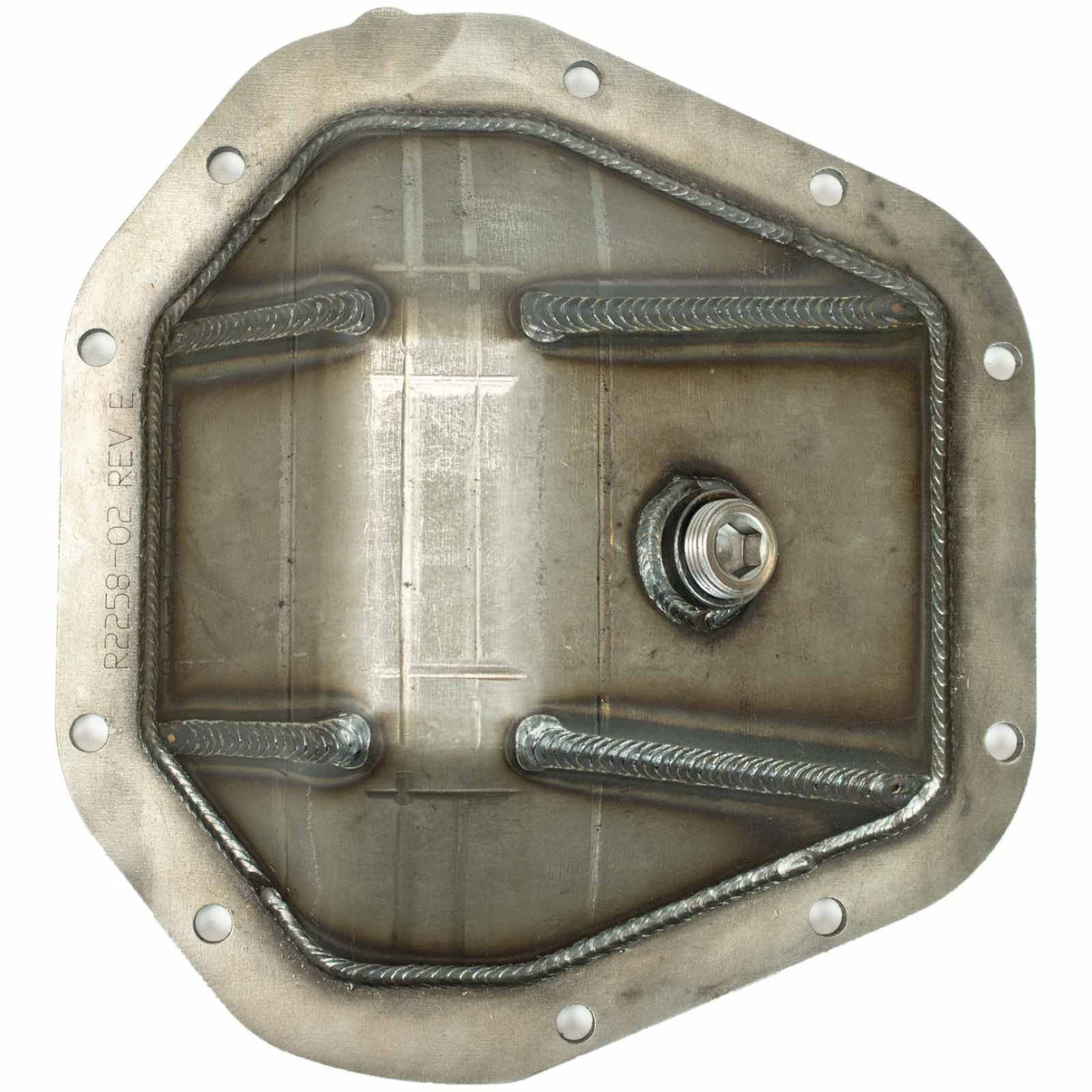

Ford Super Duty Dana 60/50 Differential Cover Low-profile 3/8" steel protection for Super Duty front axles—clearance where it counts, strength you can trust. Built from A36 P&O steel, this cover...
Low-profile 3/8" steel protection for Super Duty front axles—clearance where it counts, strength you can trust.
Built from A36 P&O steel, this cover uses a one-piece 3/8" plate cap bent in 8 places and welded to a 3/8" ring for serious impact resistance. After welding, the flange is machined perfectly flat so it seals up clean—no fuss, no leaks—whether you’re daily driving or banging through the rocks.
Engineered specifically for the Super Duty front axle, the low-profile shape clears the steering linkage and won’t interfere with the ring gear like a standard D60 cover can. It’s a straightforward upgrade that adds real protection without complicating the install.
Key Features
Part Number: R2258
Fits: 1999–present Ford F-250/F-350 Dana 60 front; 1999–2005 Excursion Dana 50 front
Low-profile design clears steering linkage; no ring gear interference
3/8" plate steel cap (bent 8 ways) welded to a 3/8" ring
A36 P&O steel construction
Machined-flat sealing surface
All seams fully welded inside and out
Includes mounting hardware
Lifetime warranty on differential covers
What's Included
Super Duty Dana 60/50 differential cover
Mounting hardware
Note
Direct bolt-on installation. Does not fit TTB front axles or non–Super Duty Dana 60 housings. Lifetime warranty on the differential cover.
