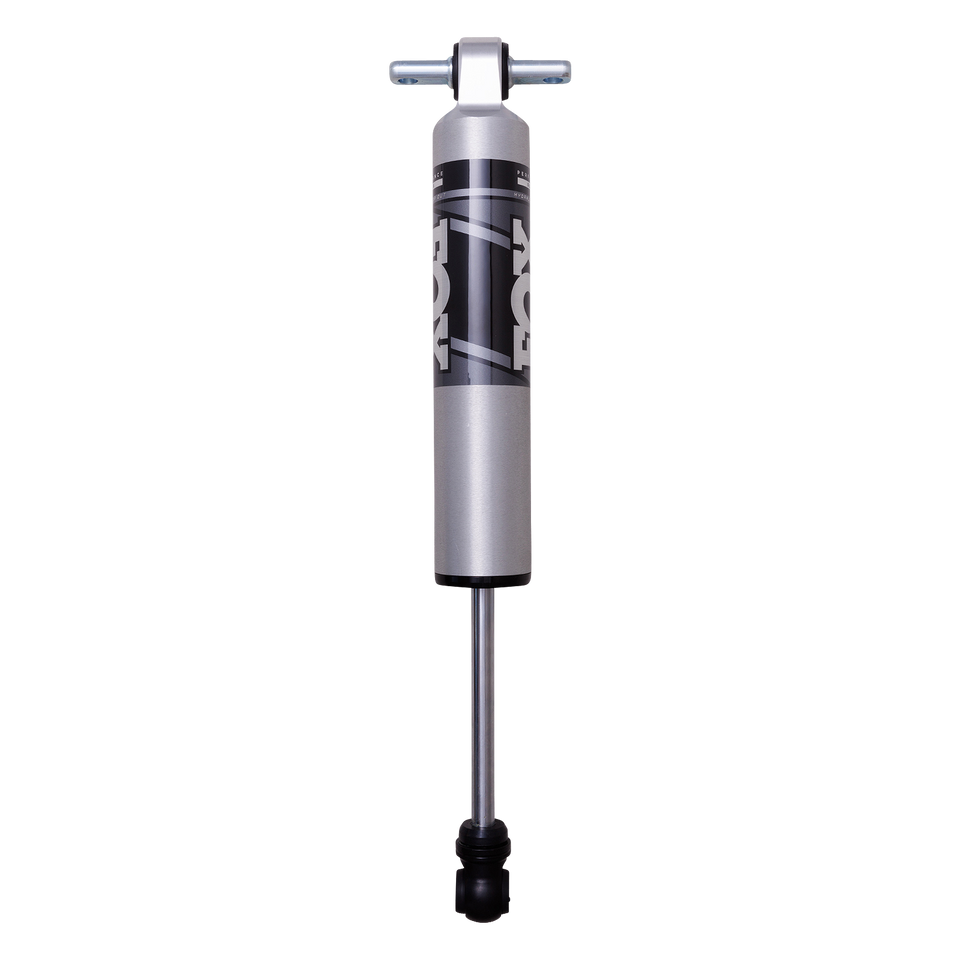

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
FEATURES
2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston
FRONT LIFT HEIGHT
6.5"
TOP MOUNT
Bar Pin
BOTTOM MOUNT
Clevis
FITMENT NOTES
Lift: 6.5 inches For Use With Raised Torsion Systems That Require Lower Eyelet Mounting. Will Not Fit OE Mounts
