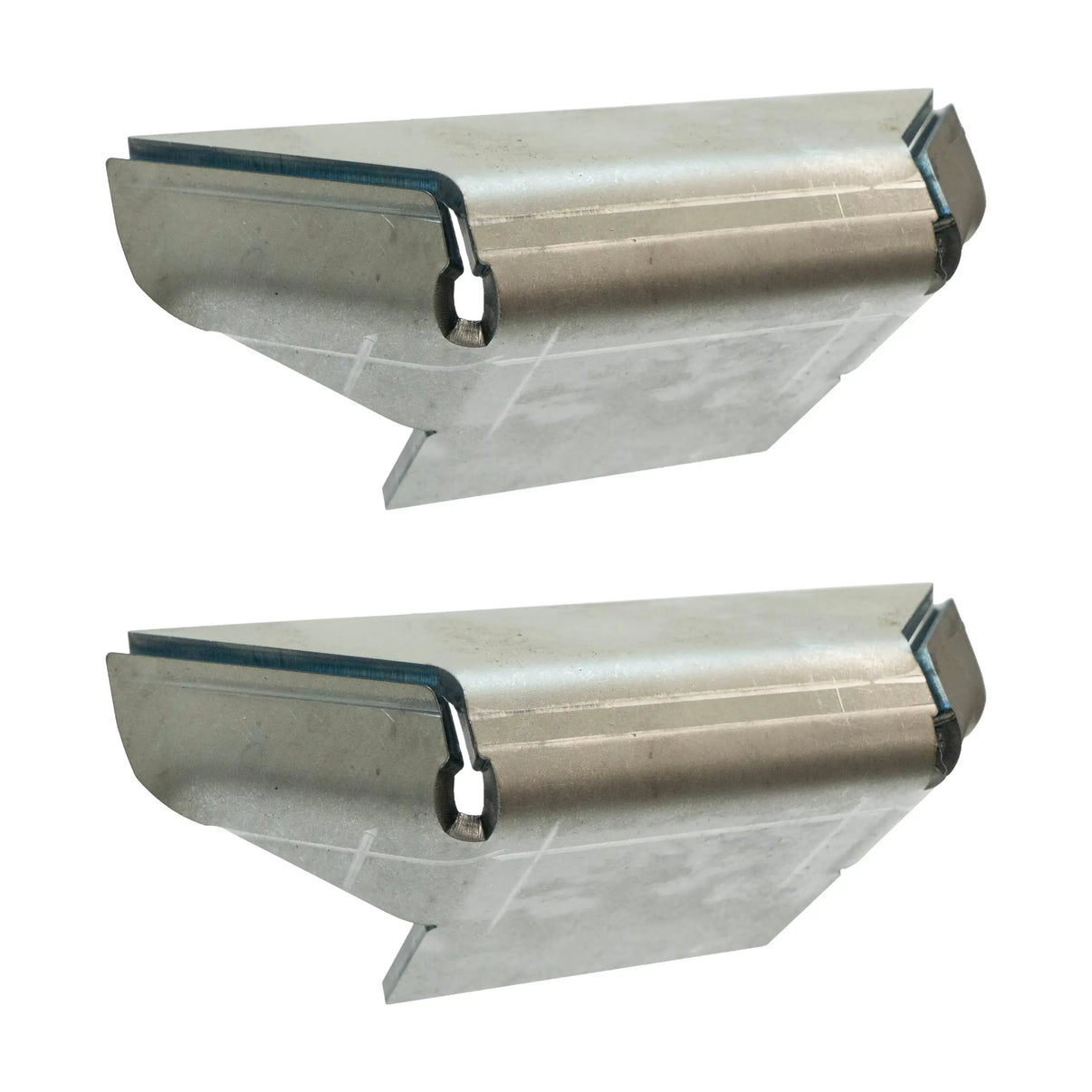

Frame Mounting Outriggers (Pair) Weld-on outriggers for coil mounts, crossmembers, cages, and more. These frame outriggers started as part of our coil spring setups, but they've become a go-to for...
Weld-on outriggers for coil mounts, crossmembers, cages, and more.
These frame outriggers started as part of our coil spring setups, but they've become a go-to for all kinds of fabrication jobs. Designed to extend 2.5" out from the frame per side, they give you a strong, flat surface to mount shocks, crossmembers, cages, and whatever else your build calls for.
Cut from 1/4" A50 plate, they’re made to weld to the top and side of your frame for max strength. Use them inboard or outboard, depending on how you're routing your suspension or driveline. Whether you're building body mounts, tying in a cage, or adding structural support to a custom frame section, these make it easy to get creative without sacrificing strength.
Key Features
Part Number: R1152
Extends 2.5" from frame edge per side
1/4" A50 steel construction
Mounts on top and side of frame for added strength
Use for shocks, coils, cages, body mounts, crossmembers, and more
Welding required
What's Included
(2) Frame mounting outriggers
Sold in pairs
Note
Welding required. These outriggers are designed to mount on the top and side of your frame rail and extend 2.5" out per side. Perfect for tight packaging, custom mounts, or supporting frame accessories. Always mock up and tack before final welding.
