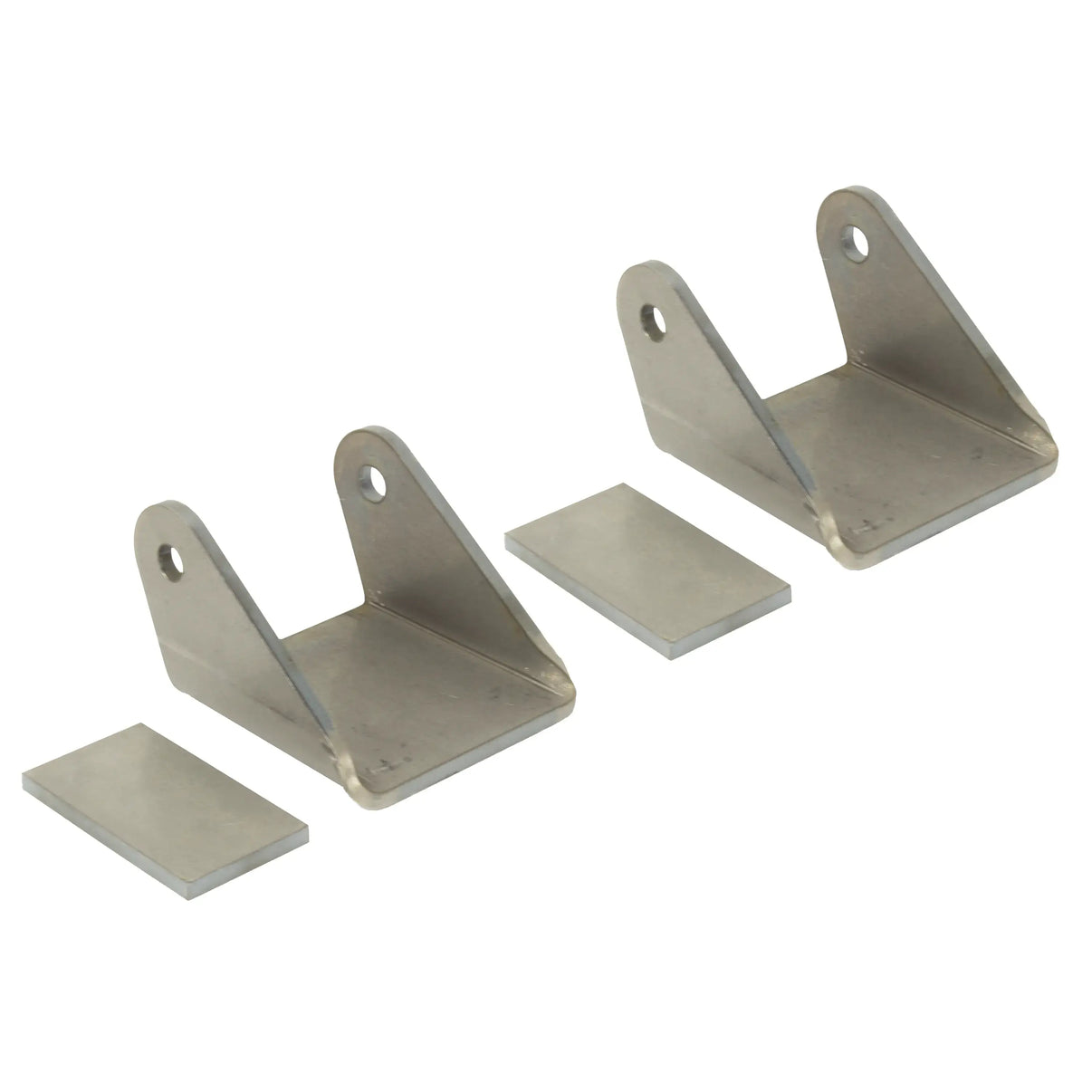

Fullsize Spring Hangers – 3 7/16" Inner Mounting Width
Heavy-duty spring hangers for fullsize GM, Ford, and Dodge leaf spring setups.
These fullsize spring hangers are built to fit 3" wide leaf springs commonly found in 1-ton and some 3/4-ton Ford, GM, and Dodge trucks. With an inner width of 3 7/16", they’re made to fit springs with factory-style bushings already installed. The included ramp plate increases rigidity and can act as a skid if you're running them rear-facing in a custom suspension setup.
The pin center aligns with the front edge of the bracket, which means you can gain over an inch of wheelbase by extending the hanger past the frame. Weld them forward or rearward depending on your layout — they’re versatile, strong, and proven in trail and work truck builds alike.
Key Features
Part Number: R1155-Kit-1
Fits 3" wide leaf springs with bushings (3 7/16" ID)
Common on Ford, GM, Dodge 3/4-ton and 1-ton trucks
Includes ramp plate for added strength and skid function
Can add 1"+ of wheelbase depending on install
Works mounted forward or rearward
Welding required
What's Included
(2) Fullsize spring hangers
(2) Ramp reinforcement plates
Sold in pairs
Note
Welding required. These hangers are designed to fit springs with 3 7/16" bushing width. The ramp plate reinforces the bracket and can serve as a skid if oriented rearward. Spring pin center is aligned with the leading edge of the bracket for easy wheelbase tuning.
