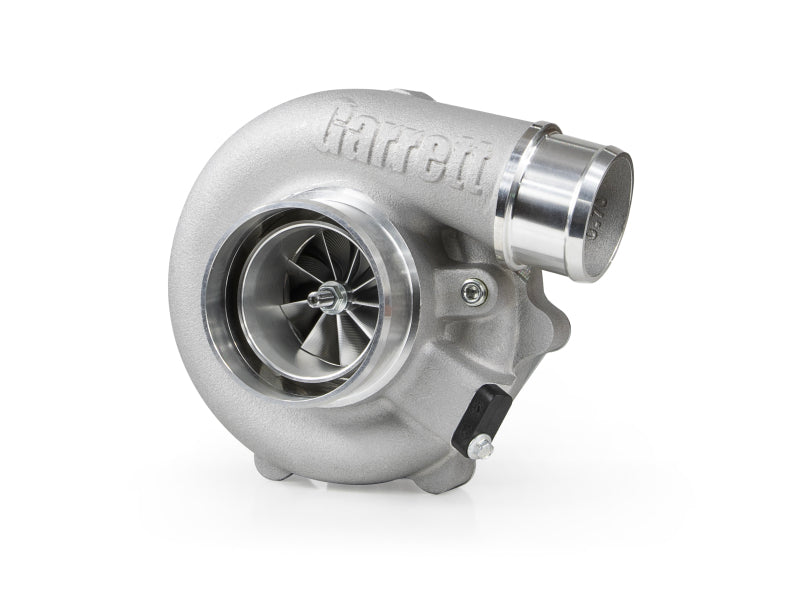

Garrett G30-725 G-Series II Turbocharger 1.01 A/R V-Band / V-Band IWG

Garrett Model 934118-5002S

GARRETT 934118-5002S Turbocharger G-Series II G30-725, 1.01 A/R, V-Band / V-Band, Internal Wastegate

• G-Series II G30-725 standard rotation turbo is fully assembled and calibrated with a 0.5 bar actuator
• New compressor aero technology increases power and performance
• Direct upgrade path for Gen I customers with just a CHRA purchase
• G-Series II utilizes Gen I compressor and turbine housings.
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Calibration required to take advantage of increased flow for a horsepower upgrade
• Increased efficiency at high flow rates
• 54mm Compressor Inducer / 67mm exducer
• Mar-M alloy turbine wheel rated up to 1050C degree
• Stainless steel turbine housings are rated up to 1050C degree
• Oil restrictor and water fittings included
