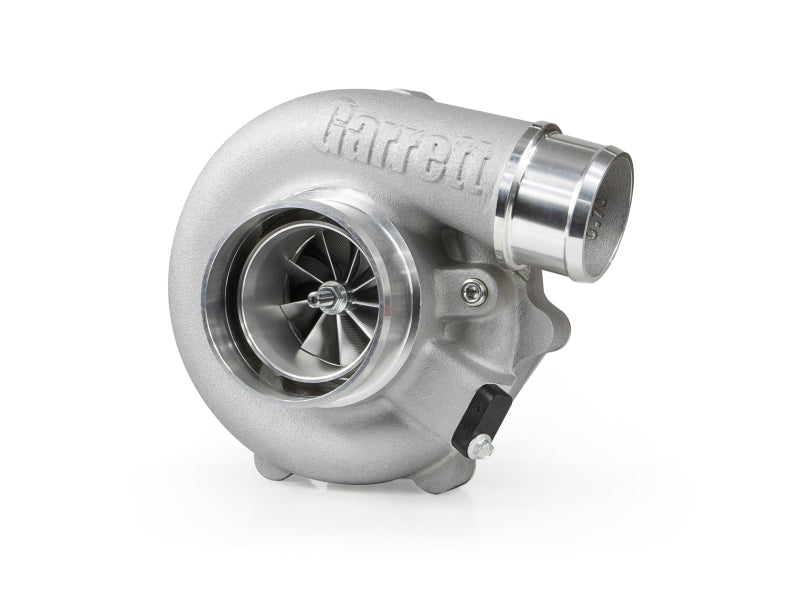

Garrett Model 934117-5002S • New compressor aero technology increases power and performance.• Direct upgrade path for Gen I customers with just a CHRA purchase.• G-Series II utilizes Gen I compressor...
• New compressor aero technology increases power and performance. • Direct upgrade path for Gen I customers with just a CHRA purchase. • G-Series II utilizes Gen I compressor and turbine housings. • Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM. • Calibration required to take advantage of increased flow for a horsepower upgrade. • Increased efficiency at high flow rates. • Standard and reverse rotation configurations. • Mar-M alloy turbine wheel rated up to 1050° C. • Stainless steel turbine housings are rated up to 1050° C. • Oil restrictor and water fittings included.
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 58mm Compressor Wheel Exducer: 71mm Compressor Wheel Trim: 65 Compressor Housing Inlet: 3 Inch Diameter Compressor Housing Outlet: 2 Inch Diameter Compressor Housing A/R: .72 Turbine Wheel Inducer: 60mm Turbine Wheel Exducer: 55mm Turbine Wheel Trim: 84 Includes Oil Feed (1mm) Restrictor Fitting to -4AN Includes two Coolant Fittings to -6AN
