GM 2.5" Wide Spring Perch (Pair) Stable, weld-on perches built for GM axles and spring-over setups. This is one of our more basic items — but it's far from generic....
Stable, weld-on perches built for GM axles and spring-over setups.

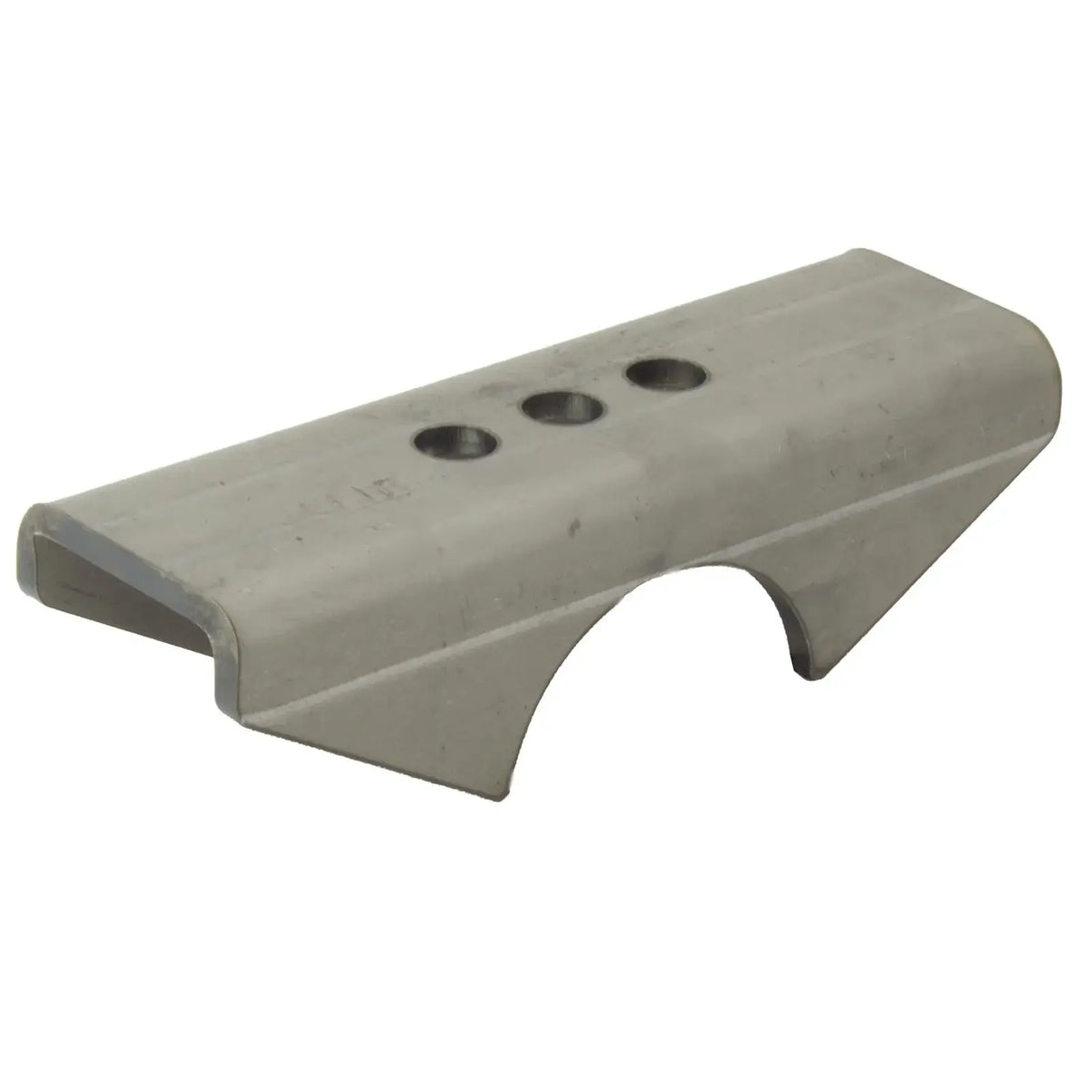

This is one of our more basic items — but it's far from generic. These spring perches are CNC laser cut from 1/4" HR P&O steel and formed on a 290-ton press brake for a precise and consistent fit. At 8" long, they help control axle wrap while giving your leaf springs a rock-solid platform to sit on.
They’re cut to fit 3.0" axle tubes but can be easily adjusted ±1/4" with a grinder. Three spring pin mounting holes give you flexibility to fine-tune wheelbase. Designed specifically for 2.5" wide leaf springs and spring-over-axle applications, these are an ideal upgrade for GM 4x4 axle swaps or custom setups.
Key Features
Part Number: R1110
Fits 3.0" axle tubes (adjustable ±1/4" with minor grinding)
2.5" wide platform for standard GM leaf springs
8.0" perch length for axle wrap control
1/4" HR P&O steel, CNC laser cut and brake-formed
3 spring pin mounting positions for wheelbase adjustment
Welding required
What's Included
(2) 2.5" wide spring perches
Sold in pairs — one axle set
Note
Welding required. These are designed for spring-over-axle applications and built to fit 3.0" axle tubes. Fitment can be adjusted ±1/4" in diameter with basic grinding. Ideal for GM axles using 2.5" wide leaf springs.
