GM Dana 60 Front Axle Simple Swap Kit Straightforward hardware to get your GM Dana 60 front axle under the rig and rolling. This kit was designed for the guys...
Straightforward hardware to get your GM Dana 60 front axle under the rig and rolling.
This kit was designed for the guys tired of piecing together parts for a Dana 60 swap. It’s based on our rear Simple Swap kits, but set up specifically for the front axle. The cast-in-place perch on the driver’s side requires a unique U-bolt plate, so we include one for that side and a standard plate for the tube side. You also only need a single spring perch, which is included. To handle articulation, we supply our curved shock brackets so your shocks can ride up the C without binding.
The kit is complete with three U-bolts (two standard 3.25" and one wider 3.875"), hardware, and everything else you’ll need to mount 2.5" leaf springs. The cast-side U-bolt plate is cut from 1/2" steel for extra strength, and the curved shock brackets are made to last. Works with most GM Dana 60 front axles, and some Dodge D60s as well — give us a call if you’re working with a Dodge axle to confirm fit.
Key Features
Part Number: R1157
Fits GM Dana 60 front axles (some Dodge D60 compatibility)
For 2.5" wide leaf springs
Includes special cast-side U-bolt plate (1/2" steel)
Curved shock brackets (1.5" ID) for better articulation
Heavy-duty 5/8" U-bolts with hardware
Welding required

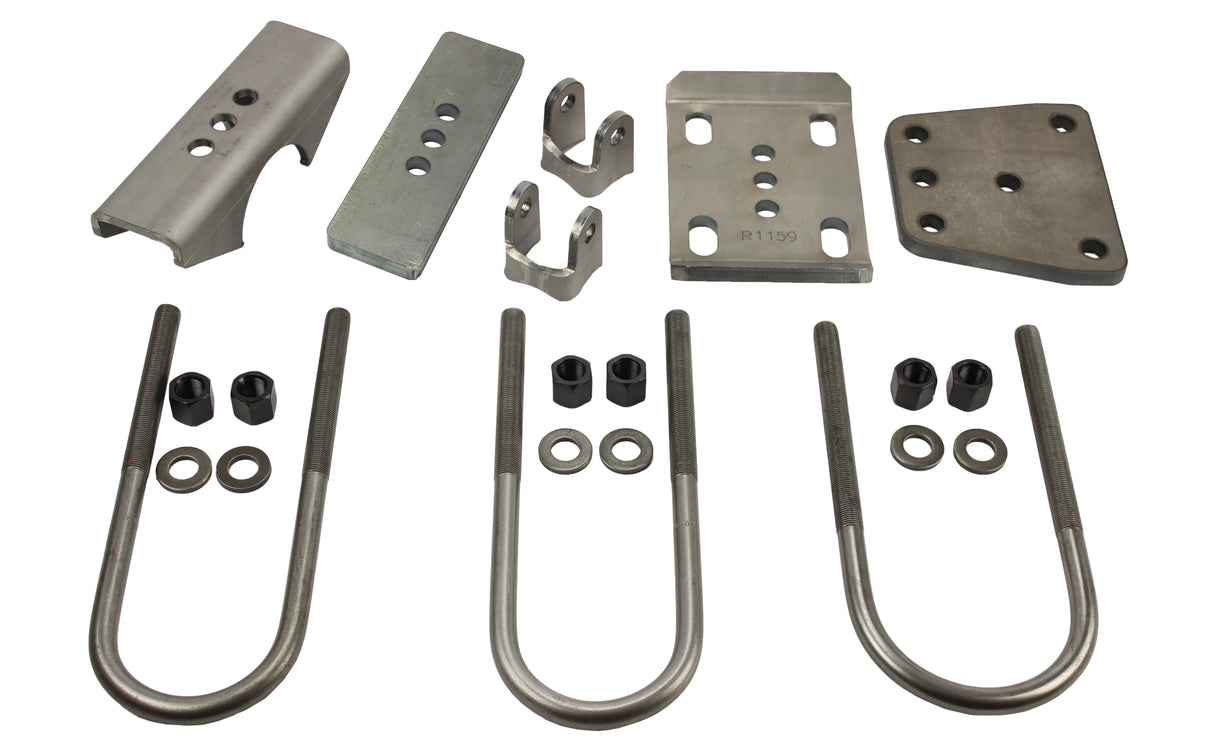

What's Included
(2) Leaf spring plates for 2.5" springs
(1) Perch for 3.25" axle tube / 2.5" wide spring
(2) Shock brackets (1.5" ID)
(2) U-bolts – 10" x 5/8" x 3.25" with hardware
(1) U-bolt – 10" x 5/8" x 3.875" with hardware
Recommended Upgrades
Dana 60 Differential Cover – Adds strength and protection
1/2" x 3" Shock Bracket Bolts – Correct hardware for shock install
Note
Welding required. Designed for GM Dana 60 front axles using 2.5" wide leaf springs. May also fit Dodge Dana
