FR SPORT

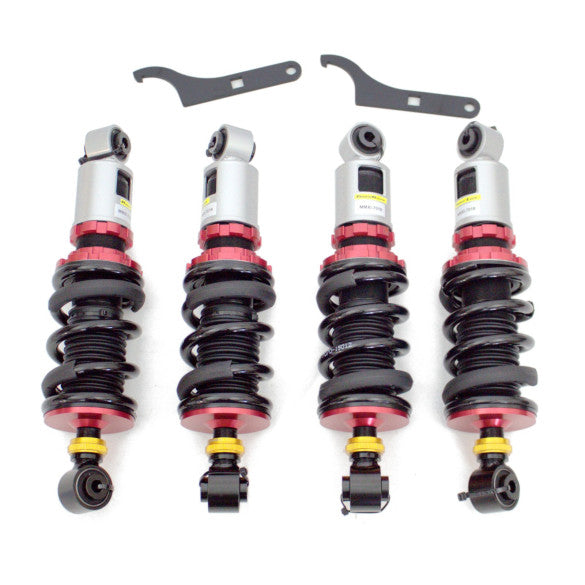

Godspeed Audi R8 Type 42/Type 4S MAXX Coilovers/MAXX Coilovers Lowering Kit

Limited-Time Offer
DIESEL2025 | Copy
00 d
:
00 h
:
00 m
$1,600.00 USD
Sold out
Tax included. Shipping calculated at checkout.
SKU: 9CHWV
Type 42, 2007-2016, MAXX Coilovers Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer...

Out of stock

Model, Year, Style: Type 42, 2007-2016, MAXX-Sports Inverted Coilovers
Godspeed Audi R8 Type 42/Type 4S MAXX Coilovers/MAXX Coilovers Lowering Kit
$1,600.00 USD
Type 42, 2007-201...
Payment and security

Your payment information is processed securely.

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • Shop Pay
  • USDC
  • Visa
View details

Type 42, 2007-2016, MAXX Coilovers

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 16 kg/mm (896 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

Type 42, 2007-2016, MAXX-Sports Inverted Coilovers

Special Notes
  • For Non-Public Road and Competition Use Only.
Damping Levels 20-Level
Shock Type(Front) Inverted Mono-Tube
Shock Type(Rear) Traditional Mono-Tube
Height Adjustment Yes
Top Mount(Front) Adjustable Camber Plate With Pillow Ball
Top Mount(Rear) Reuse Factory Top Mount
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 12 kg/mm (672 lbs/inch)
Spring Length(Front) 150 mm
Spring Length(Rear) 150 mm
Spring Inner Diameter(Front) 70 mm (2.76 inch) / 70 mm (2.76 inch)
Spring Inner Diameter(Rear) 70 mm (2.76 inch) / 70 mm (2.76 inch)

Type 4S, 2017-2023, MAXX Coilovers Lowering Kit (No MagneRide)

Special Notes No
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 16 kg/mm (896 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide
