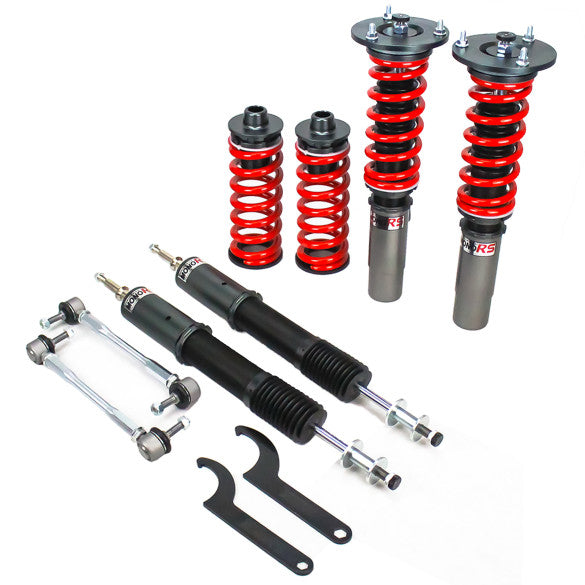

Godspeed BMW X1 sDrive E84/F48 Coilovers

Write Review

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$990.00 USD

Sold out

Tax included. Shipping calculated at checkout.

SKU: 10KBV

E84 sDrive, 2013-2015, MAXX Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any...

Out of stock

Model, Year, Style: E84 sDrive, 2013-2015, MAXX

E84 sDrive, 2013-2015, MAXX E84 sDrive, 2013-2015, MonoRS F48, 2016-2022, MonoSS

Payment and security

Your payment information is processed securely.

View details

Description

E84 sDrive, 2013-2015, MAXX

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	9 kg/mm (504 lbs/inch)
Spring Rate(Rear)	11 kg/mm (616 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	245 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	N/A
User Guide	Coilover User Guide

E84 sDrive, 2013-2015, MonoRS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	6 kg/mm
Spring Rate(Rear)	12 kg/mm
Spring Length(Front)	200 mm
Spring Length(Rear)	220 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	N/A
User Guide	Coilover User Guide

F48, 2016-2022, MonoSS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	6 kg/mm (336 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	200 mm
Spring Length(Rear)	160 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	No, Reuse Factory
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide
