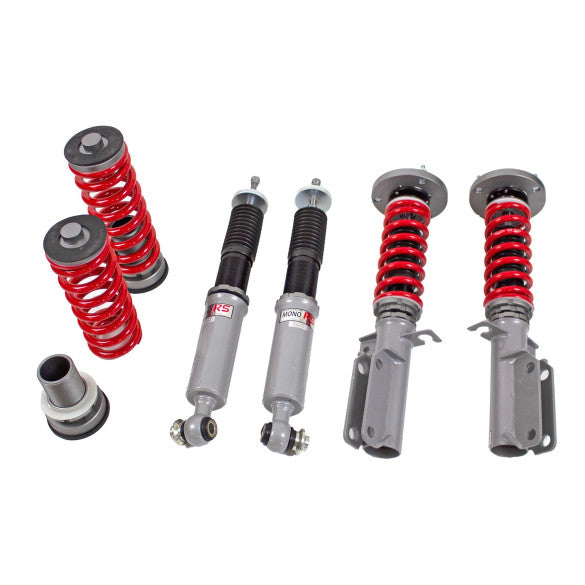

Godspeed BMW X5 E53/E70/F15 Coilovers

Limited-Time Offer
DIESEL2025 | Copy
00 d
:
00 h
:
00 m
$850.00 USD
Tax included. Shipping calculated at checkout.
SKU: 9CGMK
E53, 2000-2006, MonoRS (Rear Air-to-Coil) Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer...

Hurry up! Only 5 left

Model, Year, Style: E53, 2000-2006, MonoRS (Rear Air-to-Coil)
Godspeed BMW X5 E53/E70/F15 Coilovers
$850.00 USD
E53, 2000-2006, M...
Payment and security

Your payment information is processed securely.

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • Shop Pay
  • USDC
  • Visa
View details

E53, 2000-2006, MonoRS (Rear Air-to-Coil)

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 12 kg/mm (672 lbs/inch)
Spring Length(Front) 220 mm
Spring Length(Rear) 220 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm
Spring Inner Diameter(Rear) 62 mm
Warranty Note No
User Guide Coilover User Guide

E70, 2007-2013, MonoRS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 12 kg/mm (672 lbs/inch)
Spring Rate(Rear) 12 kg/mm (672 lbs/inch)
Spring Length(Front) 220 mm
Spring Length(Rear) 220 mm
Front Top Mount Yes, Standard Type
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm
Spring Inner Diameter(Rear) 62 mm
Warranty Note No
User Guide Coilover User Guide

F15 w/o Self-Leveling, 2014-2018, MAXX

Special Notes No
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 9 kg/mm (504 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 240 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide
