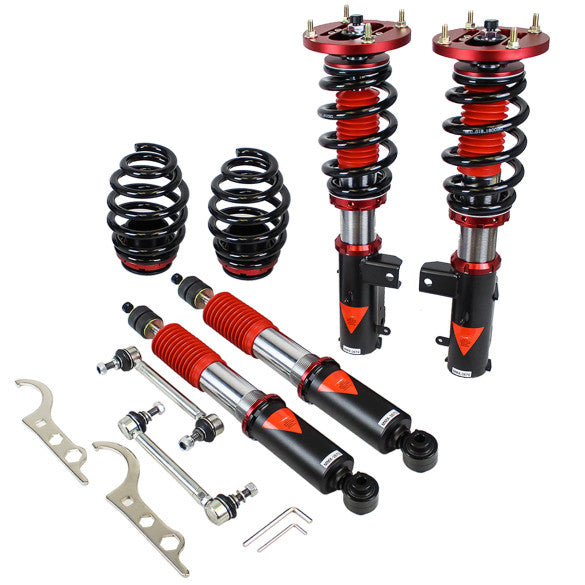

Godspeed Ford Mustang (S197) 2005-2014 Coilovers

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$990.00 USD

Sold out

Tax included. Shipping calculated at checkout.

SKU: 9CGWZ

2005-2010, MonoSS Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions....

Out of stock

Year, Style: 2005-2010, MAXX

2005-2010, MAXX 2005-2010, MonoSS 2011-2014, MAXX 2011-2014, MonoSS

Payment and security

Your payment information is processed securely.

View details

Description

2005-2010, MonoSS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	220 mm
Spring Length(Rear)	180 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

2005-2010, MAXX

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	9 kg/mm (504 lbs/inch)
Spring Rate(Rear)	8 kg/mm (448 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	230 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

2011-2014, MAXX

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	9 kg/mm (504 lbs/inch)
Spring Rate(Rear)	8 kg/mm (448 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	230 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

2011-2014, MonoSS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	6 kg/mm (336 lbs/inch)
Spring Length(Front)	220 mm
Spring Length(Rear)	180 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide
