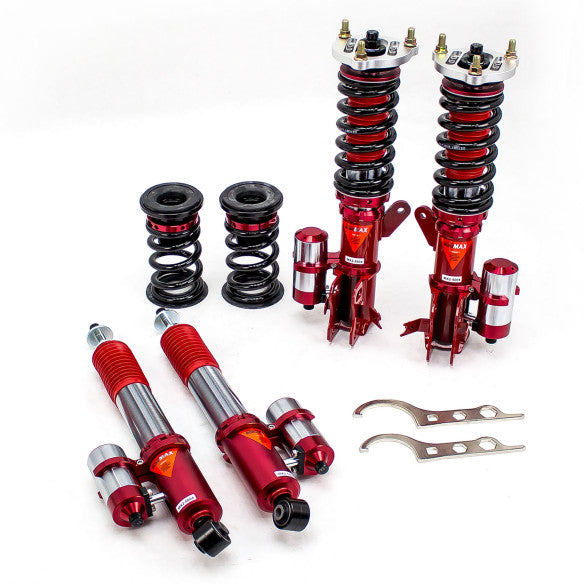

Godspeed Honda Civic Si (FB/FG) 2012-13 Coilovers

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$1,800.00 USD

Sold out

Tax included. Shipping calculated at checkout.

SKU: 9CH1F

MAXX Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. Damping...

Out of stock

Style: MAXX 2-Way

Payment and security

Your payment information is processed securely.

View details

Description

MAXX

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	10 kg/mm (560 lbs/inch)
Spring Rate(Rear)	14 kg/mm (784 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	140 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	No, Reuse Factory
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	N/A
User Guide	Coilover User Guide

MonoRS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm
Spring Rate(Rear)	10 kg/mm
Spring Length(Front)	200 mm
Spring Length(Rear)	140 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	No, Reuse Factory
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	N/A
User Guide	Coilover User Guide

MonoSS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	10 kg/mm (560 lbs/inch)
Spring Length(Front)	200 mm
Spring Length(Rear)	140 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	No, Reuse Factory
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	N/A
User Guide	Coilover User Guide

MAXX 2-Way

Special Notes	No
Damping Levels	No
Height Adjustment	Yes
Spring Rate(Front)	12 kg/mm
Spring Rate(Rear)	14 kg/mm
Spring Length(Front)	No
Spring Length(Rear)	No
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	No, Reuse Factory
Spring Inner Diameter(Front)	No
Spring Inner Diameter(Rear)	No
Warranty Note	No
User Guide	Coilover User Guide

MAXX-Soprts Inverted (2023 Edition)

Special Notes	For Off-Highway Competition Use Only.
Damping Levels	20-Level
Shock Type(Front)	Inverted Mono-Tube
Shock Type(Rear)	Traditional Mono-Tube
Height Adjustment	Yes
Top Mount(Front)	Adjustable Camber Plate With Pillow Ball
Top Mount(Rear)	Reuse Factory Top Mount
Spring Rate(Front)	7 kg/mm (392 lbs/inch)
Spring Rate(Rear)	5 kg/mm (280 lbs/inch)
Spring Length(Front)	170 mm
Spring Length(Rear)	190 mm
Spring Inner Diameter(Front)	85 mm (3.35 inch) / 70 mm (2.76 inch)
Spring Inner Diameter(Rear)	85 mm (3.35 inch) / 70 mm (2.76 inch)
