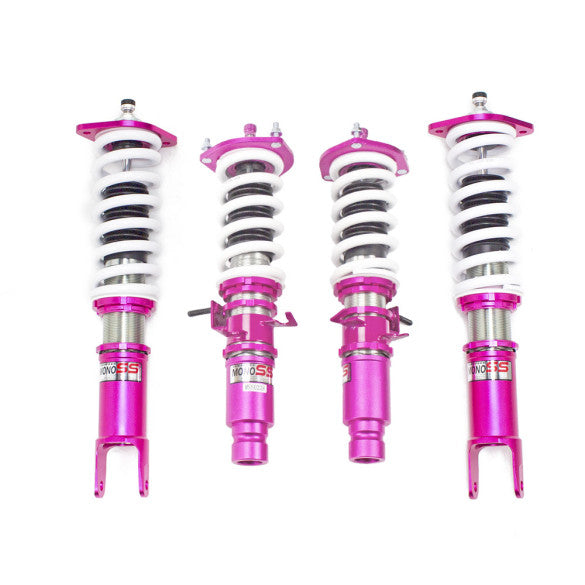

AWD, MonoSS True Coilover Setup Special Notes No Damping Levels 16-Level Height Adjustment Yes Spring Rate(Front) 14 kg/mm (784 lbs/inch) Spring Rate(Rear) 10 kg/mm(560 lbs/inch) Spring Length(Front) 180 mm Spring...
Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels
16-Level
Height Adjustment
Yes
Spring Rate(Front)
12 kg/mm (672 lbs/inch)
Spring Rate(Rear)
10 kg/mm (560 lbs/inch)
Spring Length(Front)
220 mm
Spring Length(Rear)
230 mm
Front Top Mount
Yes, Standard Type
Rear Top Mount
No, Reuse Factory
Spring Inner Diameter(Front)
62 mm (2.44 inch)
Spring Inner Diameter(Rear)
62 mm (2.44 inch)
Warranty Note
365 days limited warranty from date of purchases, proof requires. Warranty are not transferable.
