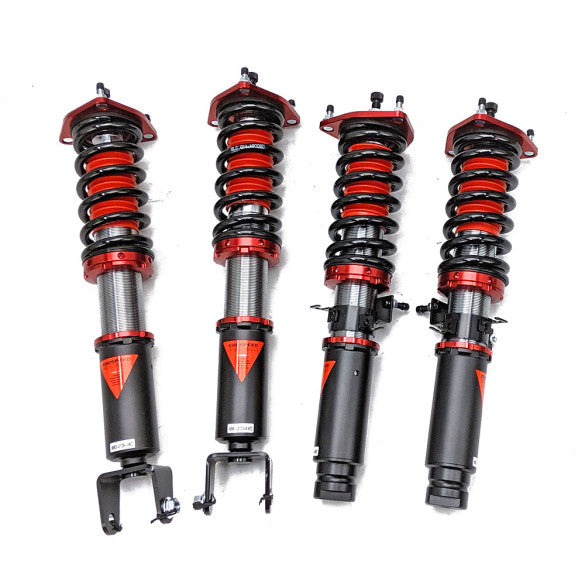

AWD with DDS, MAXX 44mm Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer...
Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels
40-Level
Height Adjustment
Yes
Spring Rate(Front)
10 kg/mm (560 lbs/inch)
Spring Rate(Rear)
8 kg/mm (448 lbs/inch)
Spring Length(Front)
180 mm
Spring Length(Rear)
180 mm
Front Top Mount
Yes, Standard Type
Rear Top Mount
Yes, Standard Type
Spring Inner Diameter(Front)
62 mm (2.44 inch)
Spring Inner Diameter(Rear)
62 mm (2.44 inch)
Warranty Note
365 days limited warranty from date of purchases, proof requires. Warranty are not transferable.
Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
