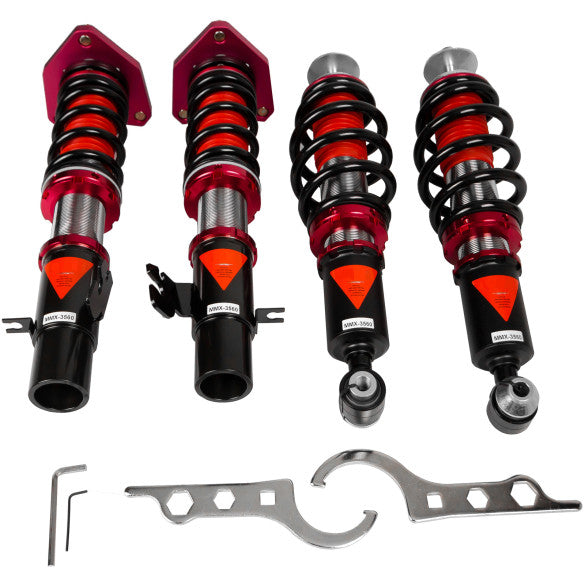

Godspeed Mini Cooper Clubman (R55/F54) MAXX Coilovers

Limited-Time Offer
DIESEL2025 | Copy
00 d
:
00 h
:
00 m
$990.00 USD
Tax included. Shipping calculated at checkout.
SKU: 0R2PC
R55, 2007-2014, MAXX (MMX3560) Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any...

Hurry up! Only 1 left

Model, Year, Style: R55, 2007-2014, MAXX (MMX3560)
Godspeed Mini Cooper Clubman (R55/F54) MAXX Coilovers
$990.00 USD
R55, 2007-2014, M...
Payment and security

Your payment information is processed securely.

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • Shop Pay
  • USDC
  • Visa
View details

R55, 2007-2014, MAXX (MMX3560)

Special Notes

Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.

WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 6 kg/mm (336 lbs/inch)
Spring Rate(Rear) 5.5 kg/mm (308 lbs/inch)
Spring Length(Front) 150 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

R55, 2007-2014, MonoSS

Special Notes

Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.

WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 6 kg/mm (336 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 160 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

F54, 2016-2024, MonoSS

Special Notes

Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.

WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 6 kg/mm (336 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 160 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

R55, 2007-2014, MAXX (MMX3530-B)

Special Notes

Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.

WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 6 kg/mm (336 lbs/inch)
Spring Rate(Rear) 5.5 kg/mm (308 lbs/inch)
Spring Length(Front) 150 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide
