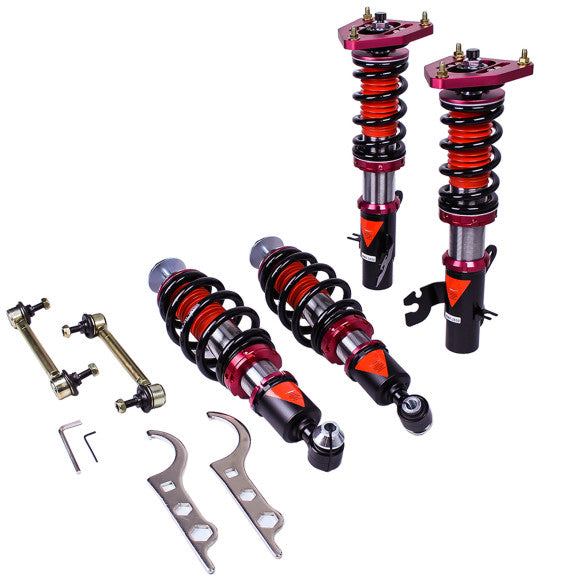

Godspeed MINI Cooper (R56/R57/R58/R59) Coilovers

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$990.00 USD

Tax included. Shipping calculated at checkout.

SKU: 10PWV

R56/R57/R58/R59, 2007-2015, MAXX Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other...

Hurry up! Only 5 left

Model, Year, Style: R56/R57/R58/R59, 2007-2015, MAXX

R56/R57/R58/R59, 2007-2015, MAXX R56, 2009-2015, MonoSS R57, 2009-2015, MonoSS

Payment and security

Your payment information is processed securely.

View details

Description

R56/R57/R58/R59, 2007-2015, MAXX

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	6 kg/mm (336 lbs/inch)
Spring Rate(Rear)	5.5 kg/mm (308 lbs/inch)
Spring Length(Front)	150 mm
Spring Length(Rear)	180 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	No, Reuse Factory
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

R56, 2009-2015, MonoSS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	6 kg/mm (336 lbs/inch)
Spring Rate(Rear)	5 kg/mm (280 lbs/inch)
Spring Length(Front)	160 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide

R57, 2009-2015, MonoSS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. WHEEL SPACER MAY REQUIRE FOR FACTORY WHEELS or CERTAIN WHEEL/TIRE COMBINATION.
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	6 kg/mm (336 lbs/inch)
Spring Rate(Rear)	5 kg/mm (280 lbs/inch)
Spring Length(Front)	160 mm
Spring Length(Rear)	200 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide
