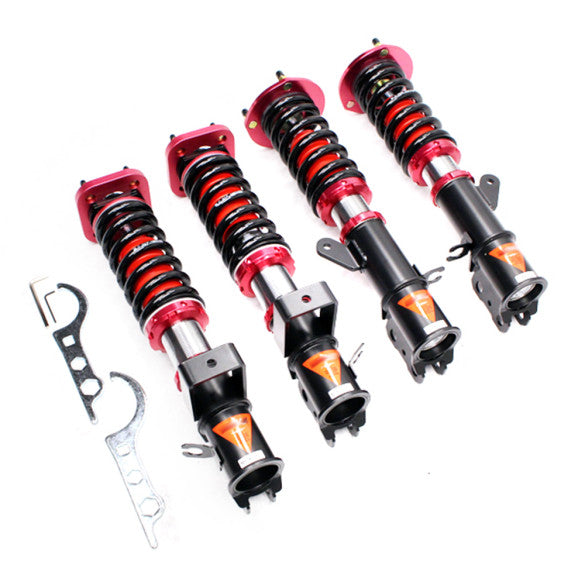

Godspeed Toyota MR2 (SW20/SW21) 1991-95 Coilovers

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$990.00 USD

Tax included. Shipping calculated at checkout.

SKU: 0MWX6

MAXX Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. Damping...

Hurry up! Only 1 left

Style: MAXX

MAXX MonoRS MonoSS

Payment and security

Your payment information is processed securely.

View details

Description

MAXX

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels	40-Level
Height Adjustment	Yes
Spring Rate(Front)	10 kg/mm (560 lbs/inch)
Spring Rate(Rear)	14 kg/mm (784 lbs/inch)
Spring Length(Front)	180 mm
Spring Length(Rear)	180 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	N/A
User Guide	Coilover User Guide

MonoRS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. Front End Link: SB-TR-130
Damping Levels	32-Level
Height Adjustment	Yes
Spring Rate(Front)	6 kg/mm (336 lbs/inch)
Spring Rate(Rear)	5 kg/mm (280 lbs/inch)
Spring Length(Front)	160 mm
Spring Length(Rear)	210 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm
Spring Inner Diameter(Rear)	62 mm
Warranty Note	No
User Guide	Coilover User Guide

MonoSS

Special Notes	Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. Front End Link: SB-TR-130
Damping Levels	16-Level
Height Adjustment	Yes
Spring Rate(Front)	8 kg/mm (448 lbs/inch)
Spring Rate(Rear)	5 kg/mm (280 lbs/inch)
Spring Length(Front)	160 mm
Spring Length(Rear)	210 mm
Front Top Mount	Yes, Pillow Ball w/ Camber Plate
Rear Top Mount	Yes, Standard Type
Spring Inner Diameter(Front)	62 mm (2.44 inch)
Spring Inner Diameter(Rear)	62 mm (2.44 inch)
Warranty Note	No
User Guide	Coilover User Guide
