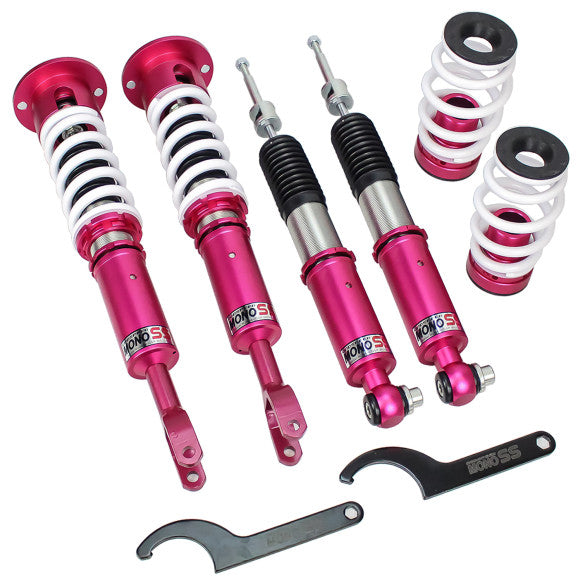

Godspeed Volkswagen Passat 4Motion/FWD (B5) Coilovers

Limited-Time Offer
DIESEL2025 | Copy
00 d
:
00 h
:
00 m
$750.00 USD
Tax included. Shipping calculated at checkout.
SKU: 10PXK
FWD, 1998-2005, MAXX (Front: 10 kg/mm (560 lbs/inch) Rear: 10 kg/mm (560 lbs/inch)) Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to...

Hurry up! Only 5 left

Drivetrain, Year, Style: FWD, 1998-2005, MonoSS (Front: 10 kg/mm (560 lbs/inch) Rear: 6 kg/mm (336 lbs/inch))
Godspeed Volkswagen Passat 4Motion/FWD (B5) Coilovers
$750.00 USD
FWD, 1998-2005, M...
Payment and security

Your payment information is processed securely.

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • Shop Pay
  • USDC
  • Visa
View details

FWD, 1998-2005, MAXX (Front: 10 kg/mm (560 lbs/inch) Rear: 10 kg/mm (560 lbs/inch))

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 10 kg/mm (560 lbs/inch)
Spring Rate(Rear) 10 kg/mm (560 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 170 mm
Front Top Mount Yes, Standard Type
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 43-62 mm (1.69-2.44 inch)
Warranty Note No
User Guide Coilover User Guide

FWD, 1998-2005, MonoSS (Front: 10 kg/mm (560 lbs/inch) Rear: 6 kg/mm (336 lbs/inch))

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 10 kg/mm (560 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 160 mm
Front Top Mount Yes, Standard Type
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

4Motion, 2000-2005, MonoSS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 14 kg/mm (784 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 200 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

FWD, 1998-2005, MAXX (Front: 10 kg/mm (560 lbs/inch) Rear: 8 kg/mm (448 lbs/inch))

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.

Not for vehicles with automatic self leveling control.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 10 kg/mm (560 lbs/inch)
Spring Rate(Rear) 8 kg/mm (448 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 200 mm
Front Top Mount No
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

FWD, 1998-2005, MonoSS (Front: 12 kg/mm (672 lbs/inch) Rear: 14 kg/mm (784 lbs/inch))

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 12 kg/mm (672 lbs/inch)
Spring Rate(Rear) 14 kg/mm (784 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Standard Type
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide
