FR SPORT

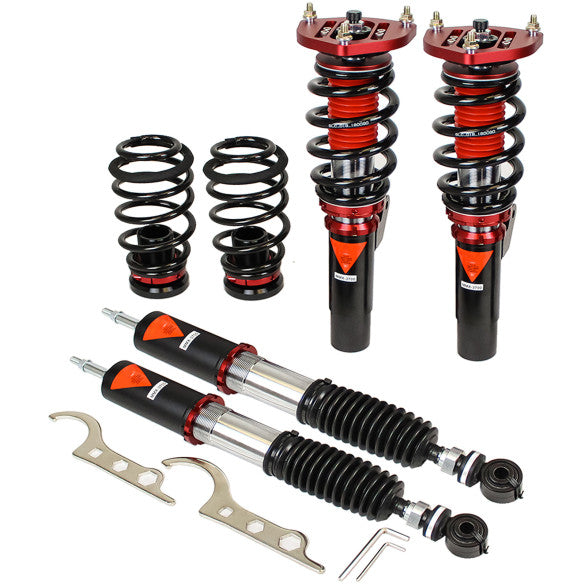

Godspeed Volkswagen Passat FWD (B6/B7/B8) Coilovers (54.5MM Front Axle Clamp)

Limited-Time Offer
DIESEL2025 | Copy
00 d
:
00 h
:
00 m
$990.00 USD
Sold out
Tax included. Shipping calculated at checkout.
SKU: 9CHY7
B6/B7/B8, 2006-2021, MonoSS (Front: 6 kg/mm (336 lbs/inch) Rear: 6 kg/mm (336 lbs/inch)) Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to...

Out of stock

Model, Year, Style: B6, 2006-2010, MAXX
Godspeed Volkswagen Passat FWD (B6/B7/B8) Coilovers (54.5MM Front Axle Clamp)
$990.00 USD
B6, 2006-2010, MAXX
Payment and security

Your payment information is processed securely.

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • Shop Pay
  • USDC
  • Visa
View details

B6/B7/B8, 2006-2021, MonoSS (Front: 6 kg/mm (336 lbs/inch) Rear: 6 kg/mm (336 lbs/inch))

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 6 kg/mm (336 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

B6, 2006-2010, MAXX

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 9 kg/mm (504 lbs/inch)
Spring Rate(Rear) 5 kg/mm (280 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 43-62 mm (1.69-2.44 inch)
Warranty Note N/A
User Guide Coilover User Guide

B7/B8, 2012-2021, MAXX

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 9 kg/mm (504 lbs/inch)
Spring Rate(Rear) 5 kg/mm (280 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 43-62 mm (1.69-2.44 inch)
Warranty Note No
User Guide Coilover User Guide

B6/B7/B8, 2006-2021, MAXX

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 9 kg/mm (504 lbs/inch)
Spring Rate(Rear) 5 kg/mm (280 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

B6/B7/B8, 2006-2021, MonoRS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 10 kg/mm
Spring Rate(Rear) 5 kg/mm
Spring Length(Front) 180 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm
Spring Inner Diameter(Rear) 62 mm
Warranty Note No
User Guide Coilover User Guide

B6/B7/B8, 2006-2021, MonoSS (Front: 10 kg/mm (560 lbs/inch) Rear: 5 kg/mm (280 lbs/inch))

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 10 kg/mm (560 lbs/inch)
Spring Rate(Rear) 5 kg/mm (280 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 210 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide
