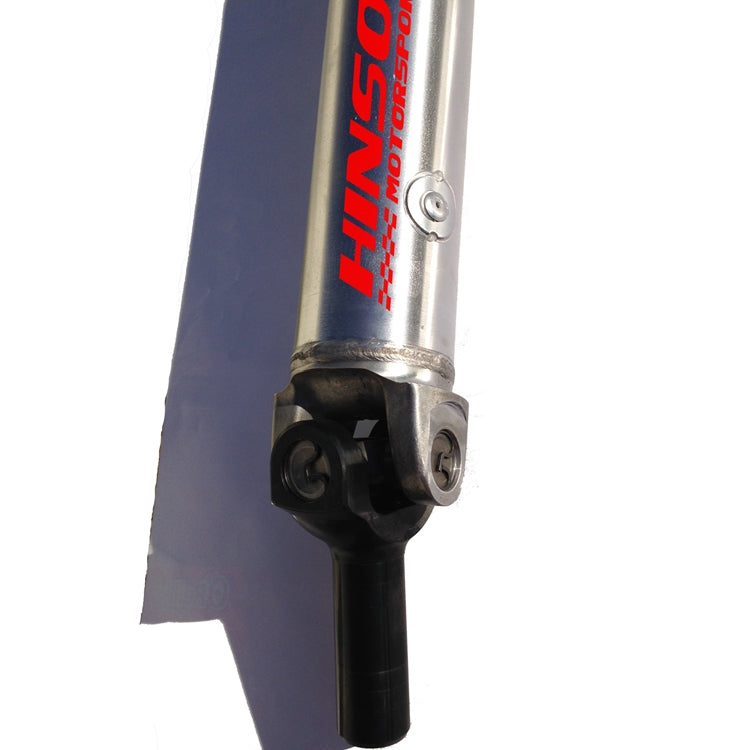

HINSON Motorsports 1,100HP GTO Aluminum Driveshaft – 2004-2006 Pontiac GTO

Upgrade your 2004-2006 Pontiac GTO with the HINSON Motorsports Aluminum Driveshaft, a high-performance one-piece replacement for the weak factory two-piece design. The OEM driveshaft’s carrier bearing is prone to failure, leading to vibration, power loss, and reliability issues. Our lightweight aluminum driveshaft eliminates these problems, delivering smoother shifts, improved throttle response, and more horsepower to the rear wheels.

Performance & Strength

Designed to handle serious power, this driveshaft is available in two performance ratings:

• Sportsman (800HP) – Ideal for high-performance street cars running street tires.

• Drag (1,100HP) – Built for track use with sticky tires, featuring upgraded components for extreme performance.

Precision Engineering & Easy Installation

• Direct fit for auto & manual transmissions – Features a dual-pattern differential flange for 2004-2006 compatibility.

• Lightweight & Strong – Constructed with premium aluminum:

  • Sportsman: 0.120” thick aluminum wall

  • Drag: 0.125” thick aluminum wall for added strength

• Critical Speed Rating – Up to 160mph or 7,800rpm, ensuring smooth operation.

• Enhanced Durability – The Drag version includes a forged chromoly 27-spline yoke for superior strength.

• Simple Installation – Bolts directly to the factory rear pinion yoke. Only minor grinding of the rear seat belt bolts is required.

Includes:

✔ Balanced driveshaft
✔ 12.9-grade installation hardware
✔ Thread locker

Availability:

• Stock 26-spline shafts – Usually in stock with minimal lead times.

• 31-spline shafts – Custom-built to order, with an average fabrication time of one week.

Ditch the unreliable factory driveshaft and experience a stronger, smoother, and more responsive ride with the HINSON Motorsports Aluminum Driveshaft. Upgrade today and feel the difference!

Historically, lead time is 3 - 5 days.

Due to current staffing, lead time may be up to 10 business days.
