HEL Performance Clutch Line for Tremec T56 Transmission using an OEM-style LS7 Slave Cylinder Flexible Clutch Feed Line and Remote Bleed Line HEL Stainless Steel Braided
Tremec T56 clutch feed and bleed lines. Both are fully fire-sleeved with stainless steel fittings, bleed nipple and stainless braided hose. For ease of installation, the feed has a AN3...
Tremec T56 clutch feed and bleed lines. Both are fully fire-sleeved with stainless steel fittings, bleed nipple and stainless braided hose. For ease of installation, the feed has a AN3 female swivel fitting to attach the remainder of your clutch line. The use of a remote bleed line eases clutch servicing due to greatly improved access and visibility.
For use with OEM-style LS7 slave cylinders (as in photos). Clutch feed line input is 3/8" x 24 UNF (AN3).
We offer an optional quick release dry break fitting to speed up dropping/installing the box in time sensitive situations, eliminating the need for re-bleeding. If you choose this option, you will need to spec up a custom line to come from the dry break.
SLAVE CYLINDER NOT INCLUDED.

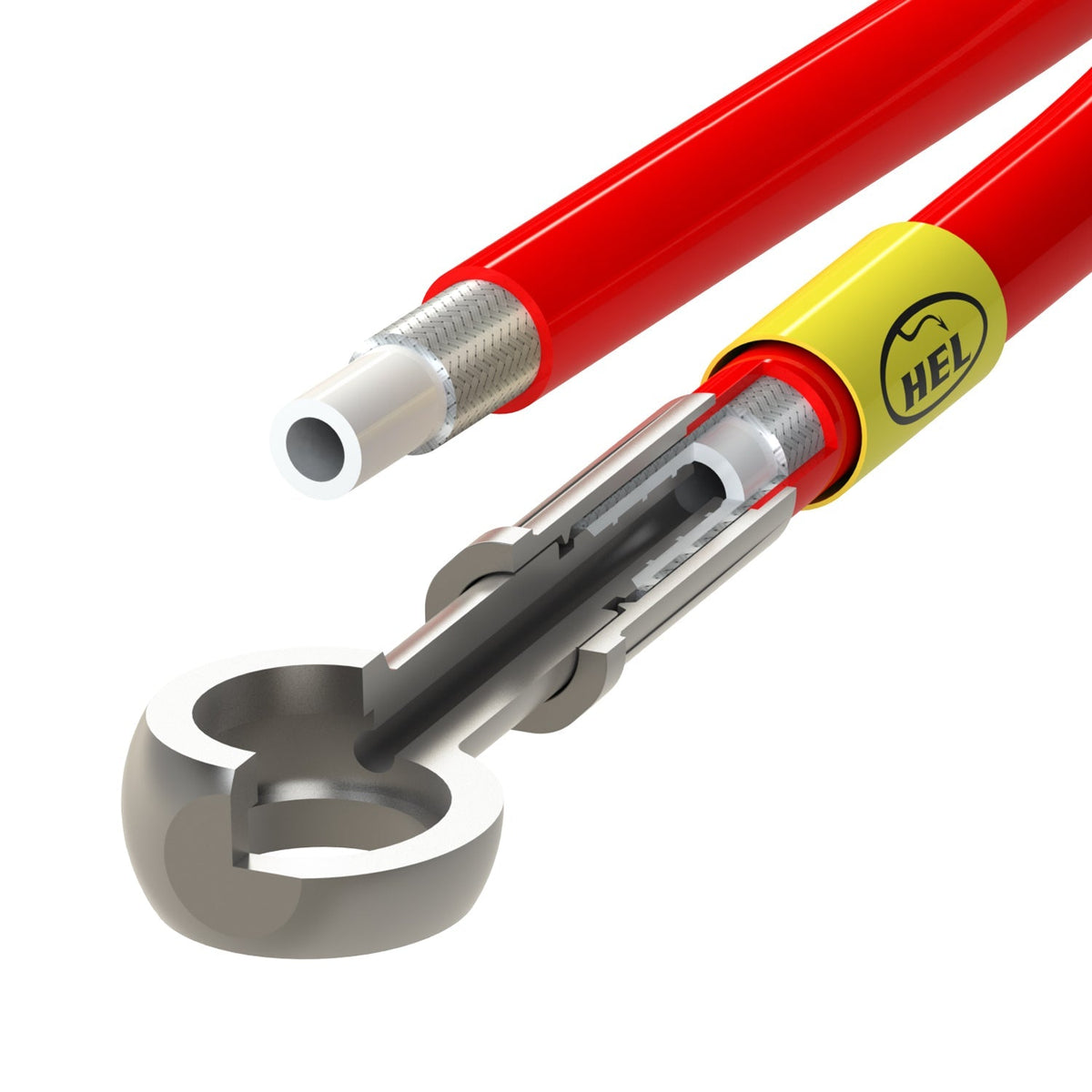

Want to see behind the scenes?
Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.
