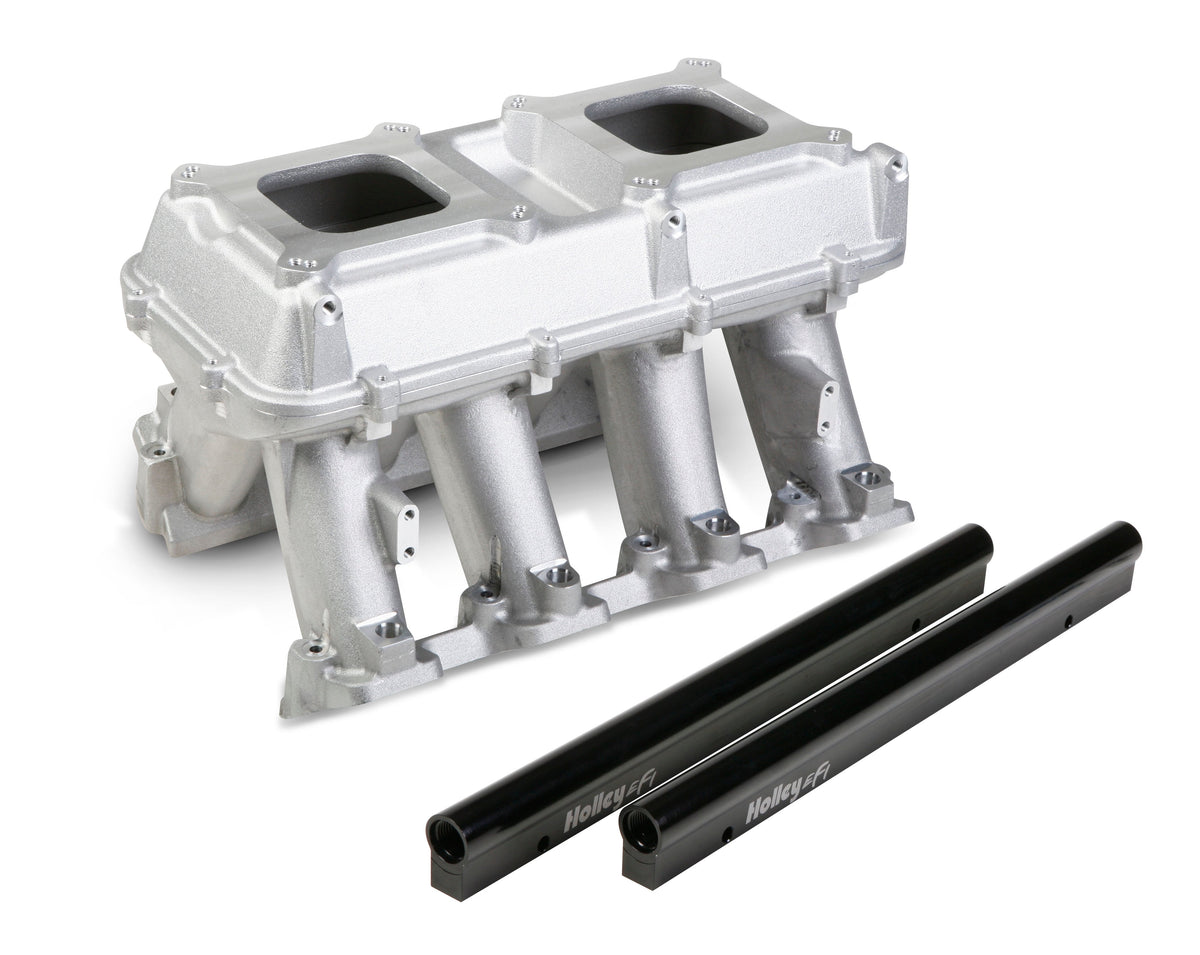

Hi-Ram Intake - GM LS3/L92 - 2 x 4150 (2 x 1000cfm sideways or inline mounting)

Holley Hi-Ram Intake - GM LS3/L92

Oil-Filled - 0-100 PSI - 1/8" NPT Male Thread

Overview
The Holley EFI analog-style gauge is designed specifically for use with EFI systems. The 0-100 psi gauge is Glycerine (oil) filled for added durability in applications where vibration or pulsation is present. The stainless steel case and bezel creates a finished look to complement your fuel system.

Features:

• Height (Carbureted or EFI, 2x4V Top Mount Blank) ???? 11.08??? to the lifter valley cover flange on engine block.
• Base Plenum Top Mounting Flange Height ???? 8.42??? to the lifter valley cover flange on engine block.
• Port Size ???? 2.49??? Height x 1.21??? Wide
• Mounting Flange Gasket Type ???? Standard LS3 Molded O-Ring
• Plenum Top Gasket Type ???? 3/32??? Round O-ring Cord
• Runner Length ???? 6.50???, As-Cast Runner Cross-Sectional Area ???? Tapered 4.25 in?? to 2.77 in??

Details:

• Color: Silver
• Construction: Cast
• Engine: GM LS3/L92
• Finish: Silver
• Flange Style: 4150 Square Bore
• Front Height: 11.08 inch
• Fuel System Type: EFI
• Manifold Type: Hi-Ram
• Rear Height: 11.08 inch
• RPM Power Band: 3500-8000 RPM
• Warranty: Limited 90 Day

Links
300-115
Instruction Sheet
