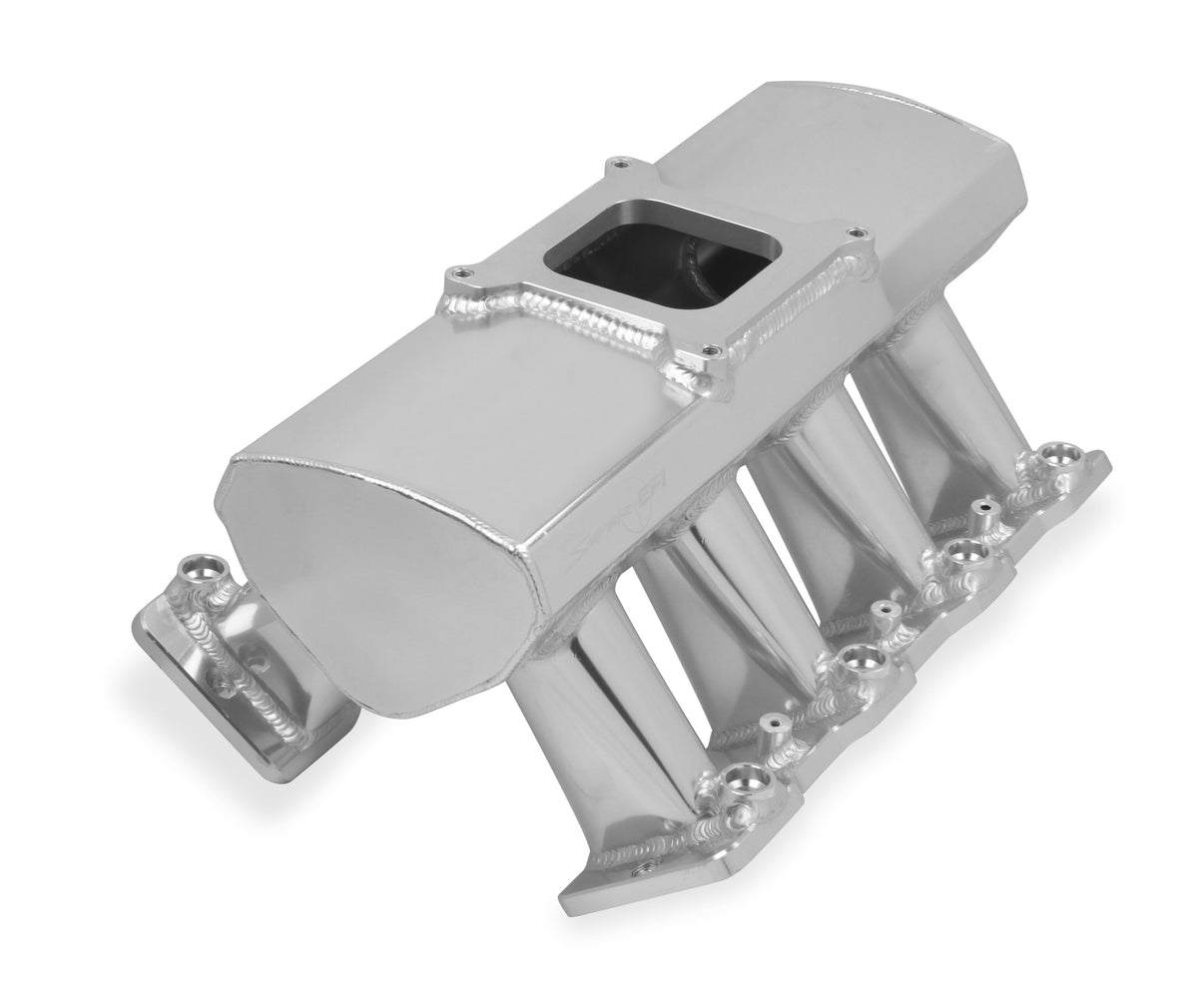

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane EFI + Fuel Rail Kit Silver with Sniper EFI logo

Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS1/2/6

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo

Overview
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***

Features:

• Silver finish creates high impact under-hood styling
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• 1 x 4150 flange option for increased air flow
• 100% TIG welded for strength and durability
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Product includes all gaskets and hardware for a hassle-free installation
• The Sniper intake will only accept EV1 style injectors.

Details:

• Color: Silver
• Construction: Fabricated
• Engine: GM LS1/LS2/LS6
• Finish: Silver
• Flange Size: 4150
• Front Height: 8.858 inch
• Fuel System Type: EFI
• Injector Style Provision: EV1
• Manifold Type: Fabricated
• Rear Height: 8.858 inch
• Recommended Use: Forced Induction
• RPM Power Band: 2500-7000 RPM
• Runner Length: 4.921" (125mm)
• Style: EFI
• Throttle Bore: 4150 flange
• Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
• Warranty: Limited 90 Day
