High Clearance Lower Link Pre-bent lower links built for maximum clearance and serious strength. Originally designed as the main tube in our URC Trailing Arms, these links proved too useful...

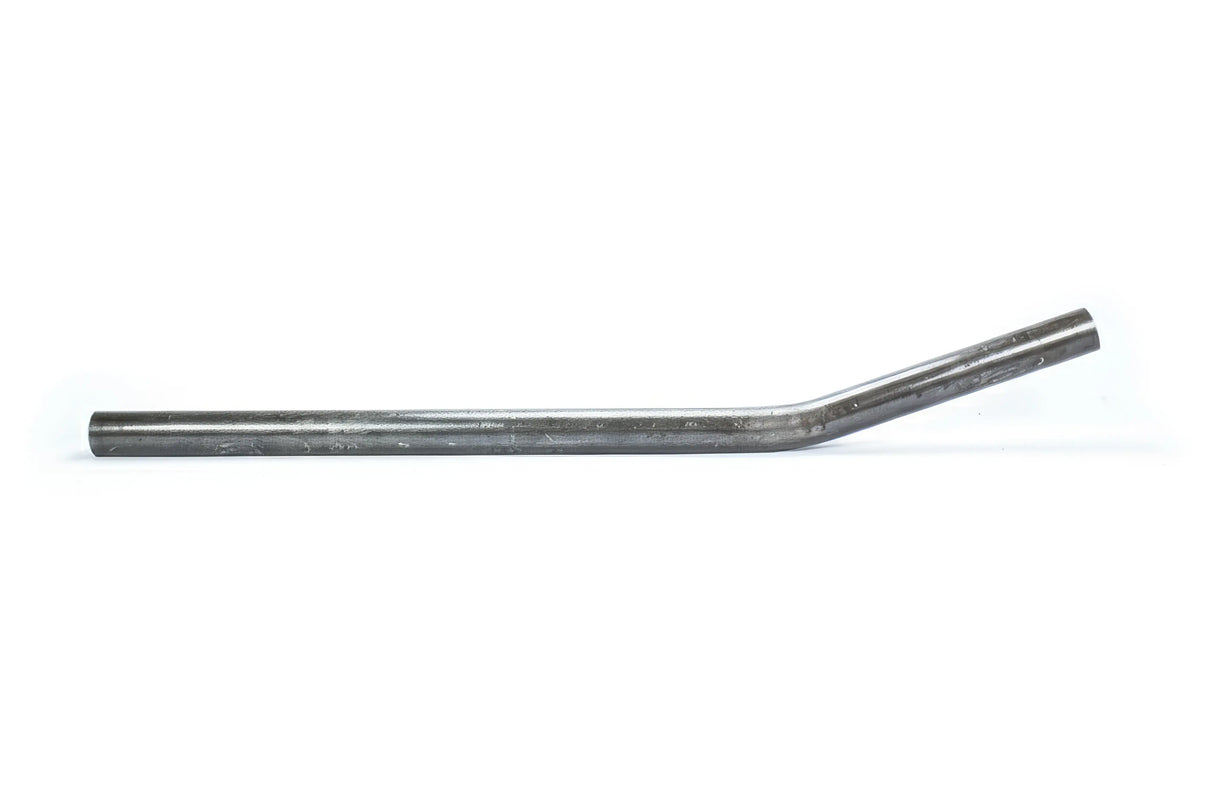

Pre-bent lower links built for maximum clearance and serious strength.
Originally designed as the main tube in our URC Trailing Arms, these links proved too useful not to offer on their own. Each link measures 44" long with a 6.3" offset and an 18° bend — a shape designed to solve one of the biggest challenges in suspension setups: tire-to-link clearance. Most tubing benders can’t handle .250" wall DOM, so we do the hard part for you.
Whether you’re running big tires, building a high-clearance radius arm system, or just want to keep your links from hanging up on rocks, these are a proven solution. Strong, simple, and sold individually.
Key Features:
Part Number: R1982-01
44" length with 6.3" offset and 18° bend
Made from 2" x .250" wall DOM tubing
Pre-bent for tire clearance on steering axles
Improves turning radius without changing link geometry
Increases ground clearance and reduces abuse to link arms
Ideal for high-clearance radius arm setups
Recommended to run a bushing on the short end to prevent link roll
Sold individually
Note:
Designed for high-strength off-road suspension applications. Sold individually — order (2) for a pair. Bushing recommended on the short end for best performance and durability.
