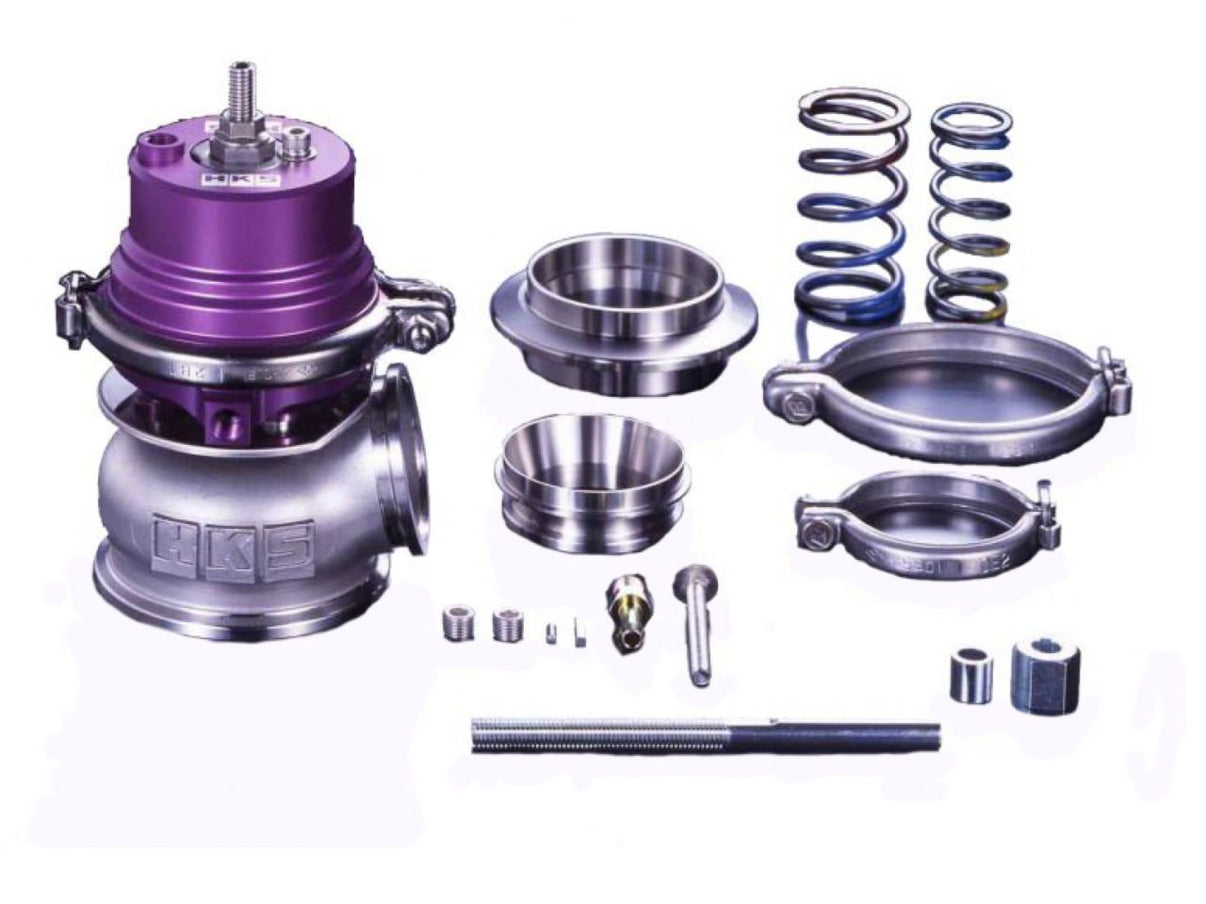

The HKS GT II Wastegates are the latest in wastegate technology. They feature a lower body cast from stainless steel and an anodized purple upper case machined from billet aluminum. The GT II Wastegates weighs approximately 2/3's the weight of the original GT Wastegate and are significantly smaller in height and width. Their compact size combined with the GT II's V-band inlet and outlet flanges allows for versatile mounting in tight spaces. -- GT II Wastegates also include additional wastegate springs which allow for different base boost level starting points. A special tool is also included which allows for the simple installation of the extra wastegate springs.
HKS GT II Wastegates are available with either a 50mm or 60mm stainless steel valve, and have base boost levels that range from 0.8kg/cm2 (11.6PSI) - 2.0kg/cm2 (29.0PSI) and 0.6kg/cm2 (8.5PSI) - 2.1kg/cm2 (29.9PSI), respectively. Like all HKS Wastegates, boost can be raised above the base boost setting by using an HKS EVC or VBC boost controller.
Small in size and lightweight, but it has the same lift amount/flow characteristic as the GT wastegate.
The upper case is made of alumite, and housing is stainless cast steel for the beautiful exterior.
Adopted G coupling for installation of upper cases and lower case.
V band is included to install the exhaust manifold.
The spring change work will be more efficient by using attached SST.
