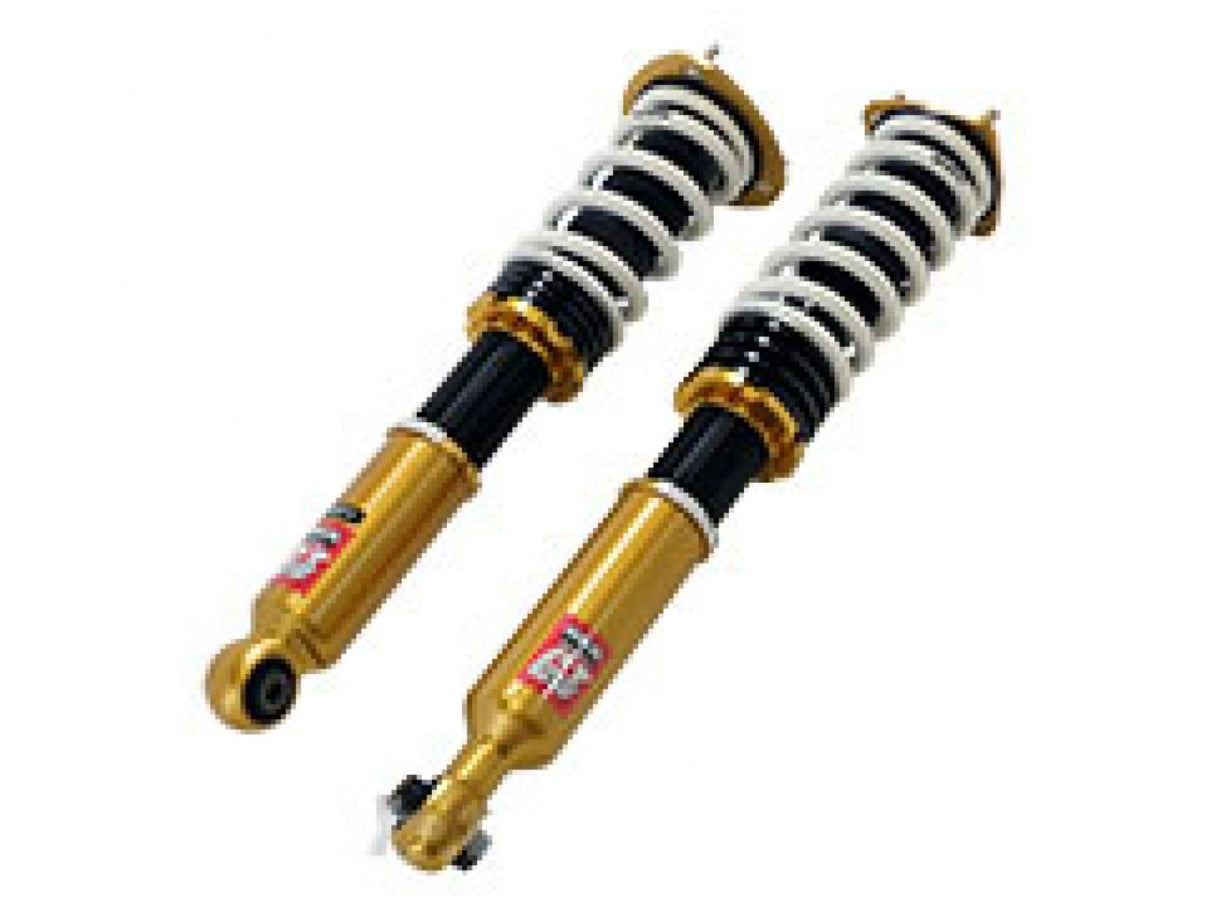

This is for both sport and comfort in driving performance. Set the dial at 15 step for both front and back for town drive. If the front case size is less than 347mm, upper and body might interfere with each other in full bump. If the rear case is less than 383mm, upper and body might interfere with each other in full bump. The vehicle height data from other than the test is computational data.(The numbers does not guaranteeing the height)
Application:
Engine
3S-GE
Model Year
98/10 - 05/07
Remarks
Specification:
FRONT
REAR
Damping force adjustment
30 steps
30 steps
Base valve
-
-
Height adjustable lower bracket
?
?
Upper mount
Rubber
Rubber
Inverted/Normal type
Normal
Normal
Damper/Spring layout
Coilover
Coilover
Spring rate change at factory
Possible
Possible
Damping force adjustment with wire
-
?
Helper spring (Spring rate N/mm)
? ( 19.8 )
? ( 19.8 )
Ride Height:
Factory *2
Test data
Adjustable range High - Low *3
Drivable range High - Low *4
FRONT
Ride height *1
633
?
674 ? 603
649 ? 603
Against stock
-41
?
0 ? -71
-25 ? -71
REAR
Ride height *1
634
?
668 ??559
668 ??559
Against stock
-34
?
0 ? -109
0 ? -109
*1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehicle.
Kit information:
Spring of Full Kit
F
R
Spring rate N/mm(kgf/mm)
98 ( 10 )
78 ( 8 )
Free height (mm)
170
200
Spring type
Straight
Straight
Recommended range to change spring rate N/mm(kgf/mm)
±20 ( 2 )
±20 ( 2 )
Specification of damper:
F
R
Damping force (Rebound/Damping)N*
1775 / 441
1049 / 177
Default position of dial
15
15
Remaining damper stroke (Rebound/Damping)mm
44 / 41
59 / 56
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data:
F
R
Default
Test
Drivable limit High *
Drivable limit Low *
Default
Test
Drivable limit High *
Drivable limit Low *
Length of case (mm)
355
?
365
347
407
?
420
383
Spring Set length(mm)
196
?
196
207
244
?
241
270
Length to ride hight adjuster (mm)
81
?
91
62
65
?
88
15
Lever ratio
1.57
1.50
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
