Holley EFI CAN Input/Output Module KitX and Y Axis G-MeterOverviewIntroducing the Holley EFI 2 Axis G-Meter. Designed to be stable in the harshest environment. Co-Designed with RACEPAK, this G-meter would...
Overview Introducing the Holley EFI 2 Axis G-Meter. Designed to be stable in the harshest environment. Co-Designed with RACEPAK, this G-meter would be a perfect fit for your four digit horsepower drag radial machine, or an autocross corner carver! The G-meter features both X and Y axis outputs. The X axis registers from a negative 3 G (deceleration) to a positive 12 G (acceleration). The Y axis registers +/-7.5 G. In order to ensure the installation is simplified the ECU pins come pre crimped. Loose pins are also provided if the cable needs to be shortened for clean installations.
Features:
This module is perfect for anyone wanting their Holley EFI ECU to control more functions or monitor more data channels
HP and Terminator X EFI installations with only 4 inputs and 4 outputs can now add more functionality to their EFI system!
Quickly expand Dominator ECU??????s Input / Output control with 8 additional inputs and outputs

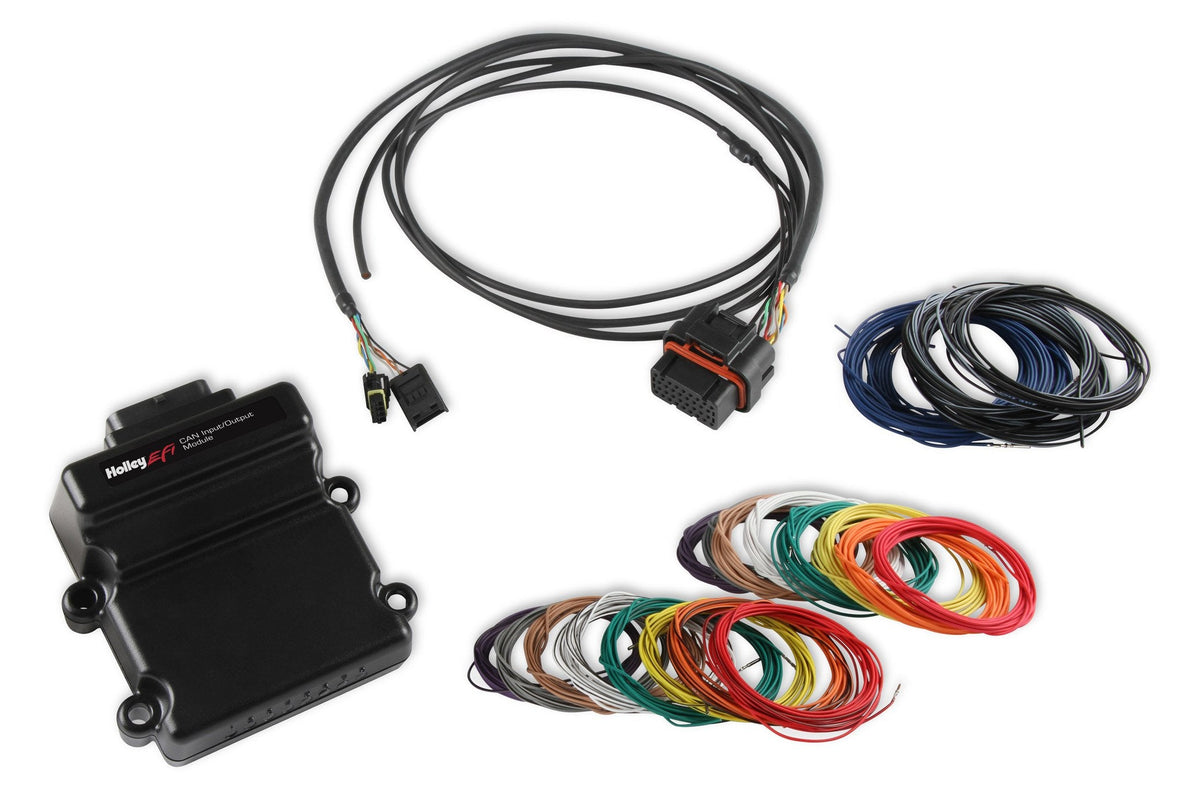

The 554-165 kits contain a pre-terminated CAN Harness, allowing you to quickly install the Holley EFI CAN Module to any existing Holley EFI installation.
Pre-Terminated flying leads makes installing new wires a breeze.
Inputs can be used for things such as:
-Switch 12v Toggle Switches - can be configured for external mechanical relays, or setup as digital switches via a Holley EFI dash
- Ground input for brake pedal switch
-5v analog inputs for sensors like fuel pressure, oil pressure, or nitrous bottle pressure
-Thermistor inputs for Coolant temperature sensors
Outputs can be used for things such as:
-Switch Low (Ground) ???? For relay control or activation
-Switch Low PWM (Ground) ???? -Switch Low PWM (Ground) ???? PWM Fan control ???? PWM Fuel Pump control - or other PWM- controlled devices.
Adjustable broadcast rate for each channel - from 0-100hz.
