Holley EFI Fuel Tank Modules - 255 LPH - Tri-Five Chevrolet Vehicles

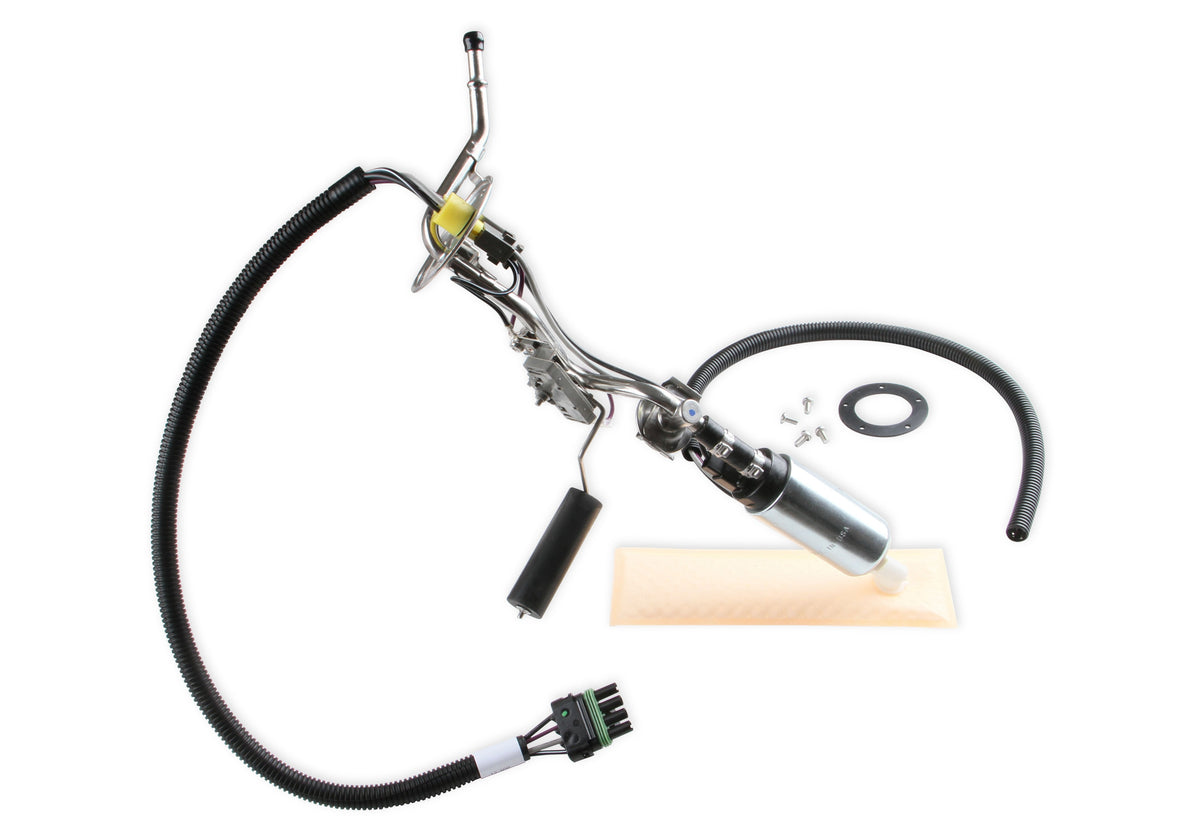

In-tank fuel pump module for 1955-1957 Chevrolet Coupe & Sedan. Supports Up To 550 Horsepower.
Overview
This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates
The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1955-1957 Chevrolet Coupe & Sedan Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
Features:
Supports up to 550 horsepower (HP)
Flows 255 liters per hour (LPH)
Internally regulated to 58 PSI
Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues
Application    1955-1957 Chevrolet Coupe/Sedan Average Flow Rating    255 LPH Connector Gender    Male Free Flow LPH    255 Fuel Filter Included    Yes Fuel Sending Unit Included    Yes Fuel Sending Unit Ohms    0-30 Ohms Fuel Tank Pressure Sensor Included    No Fuel Type    Gasoline Gasket Or Seal Included    Yes Grade Type    Performance In Tank or External    In Tank Inlet Diameter (in)    5/16 IN      5/16" Inlet Quantity    One Lock Ring Included    Yes Material    Steel and Plastic Maximum Pressure    58 PS Negative Ground    Yes Outlet Outside Diameter    3/8 IN Outlet Quantity    One Pump Type    Electric Regulator Included    Yes Resistance Ohms Empty    0 82 Resistance Ohms Full    90 82 Strainer Included    Yes Vent Size    N/A Warranty    Manufacturer's Limited 90 Day Warranty Wire Harness Included    Yes
