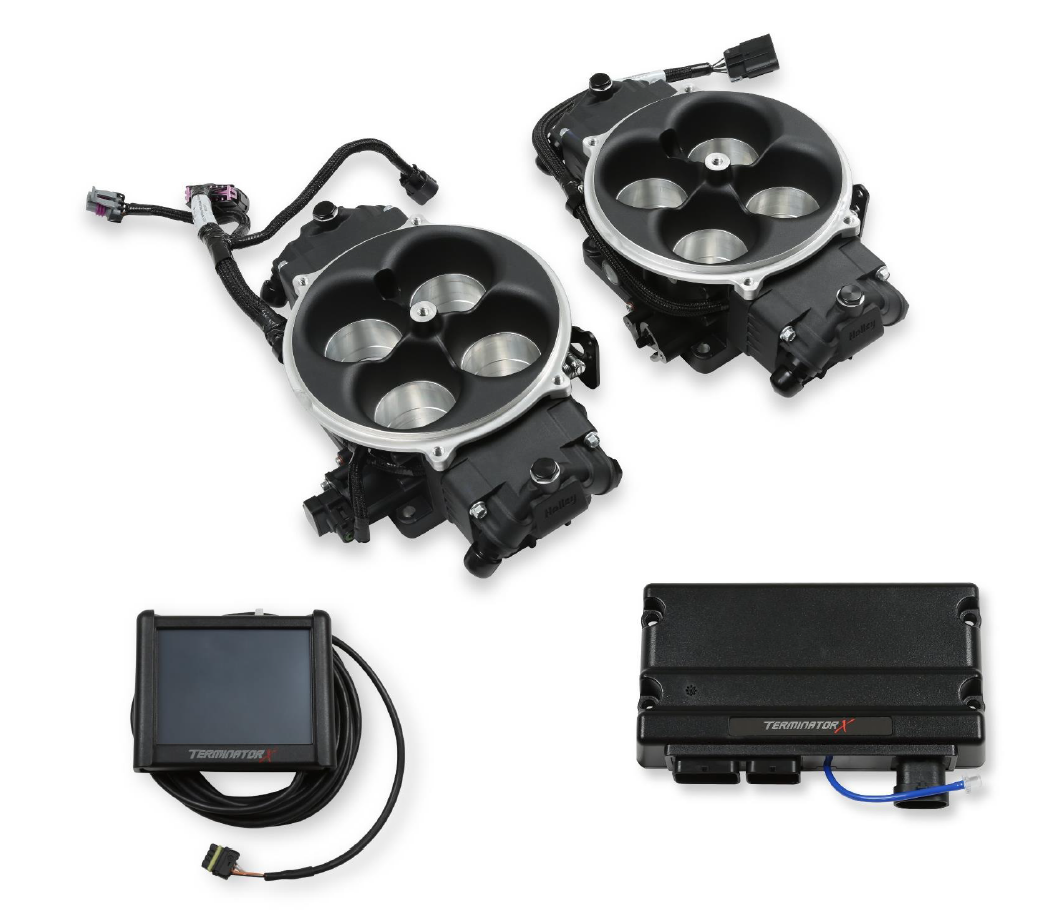

Holley EFI Terminator X Stealth 2x4 4500 Kit - Black
8 Injectors - 800-1500 HP
Overview The Terminator X Stealth 4500 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Not for use with engines producing less than 800 horsepower
Gasoline Only
Use of leaded race fuels may shorten the service life of the WBO2 sensor
Features:
Bolt on 4500 Flange Carburetor Replacement for 2x4 intake manifolds
Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
2.125??? Throttle Plates, Flow 1440 CFM each for large cubic inch engines
Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options
External fuel pressure regulator required, such as 12-848
Throttle Linkage not included
Each throttle body contains 4x 100lb/hr fuel injectors
Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations
Timing Control support integrated within the ECU using supporting components (distributor, ignition box, or crank trigger)
High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Self-tuning ECU means you don??????t have to be a computer/tuning wiz to have EFI!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
Plug and play with Holley EFI Accessories, such as the 12.3??? and 6.86??? Pro Dash; CAN EGT; and Digital Analog style EFI gauges
