Holley Standalone Digital Dash KitWide range of tuning and data-monitoring options in a compact 3.5" LCD displayOverviewThe touch screen LCD provides a dynamic range of tuning and data monitoring options...
Compact, customizable dash for use in a variety of applications
7??? low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
800x480 resolution with auto brightness and dimming
Operating voltage min 8V - 20V
Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
Weather resistant aluminum housing with flexible mounting options
Completely customizable layouts, with multiple default configurations to get you running in no time!
Multiple gauge indicator types with limitless customization options
Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay*
Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes
A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come!
Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution!
User definable warnings for any input
Configurable progressive shift lights and light bar
Expandable internal storage on micro SD card
Free Software and Firmware upgrades, providing a future proof display solution

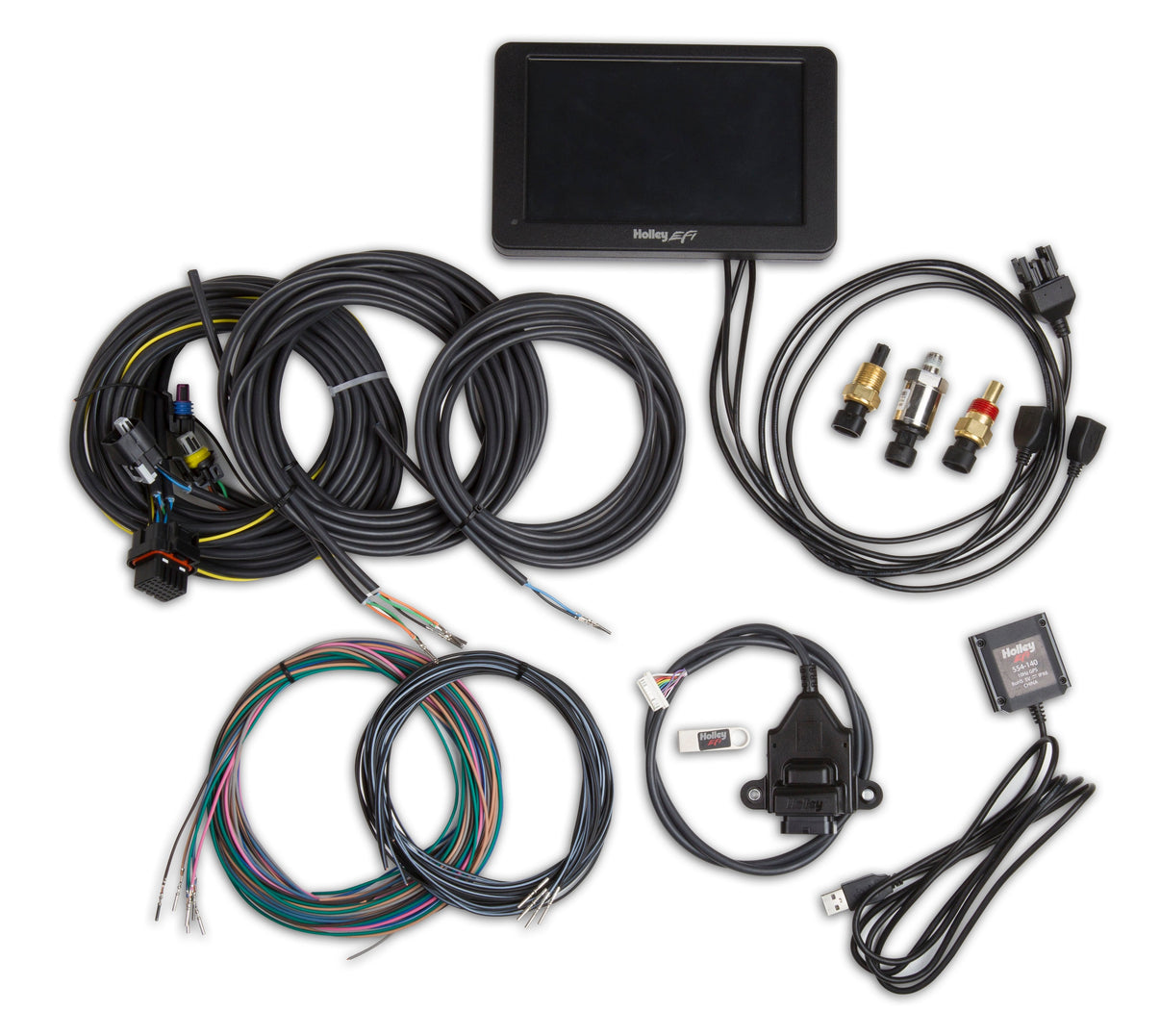

Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS
