Ideal 63" Chevy Spring Swap Kit

Ideal 63" Chevy Spring Swap Kit

A complete kit to mount 63" Chevy leaf springs under your rig — customizable for your axle and shackle setup.

This kit includes everything needed to properly install 63" Chevy rear springs, one of the most popular swaps for strength, flex, and ride quality. It provides spring plates, perches, hangers, shackles, bushings, U-bolts, and hardware, with options to fit different axle tube sizes and shackle lengths. The recommended 5" shackles usually set the springs at 65–70 degrees to prevent inversion, but shorter or longer shackles can be chosen to match your axle and ride preference.

All brackets are built for a strong, weld-on installation. Urethane bushings are included and must be greased properly during assembly for long-term performance. By bundling all the key components into one package, this kit makes the 63" Chevy spring swap straightforward, while giving flexibility to fine-tune your suspension setup.

Key Features

• Product Number: R1799
• Complete kit to mount 63" Chevy leaf springs
• Includes brackets, shackles, bushings, U-bolts, and hardware
• Customizable for axle tube size and shackle length
• Weld-on installation for durability
• Improves ride quality, strength, and articulation

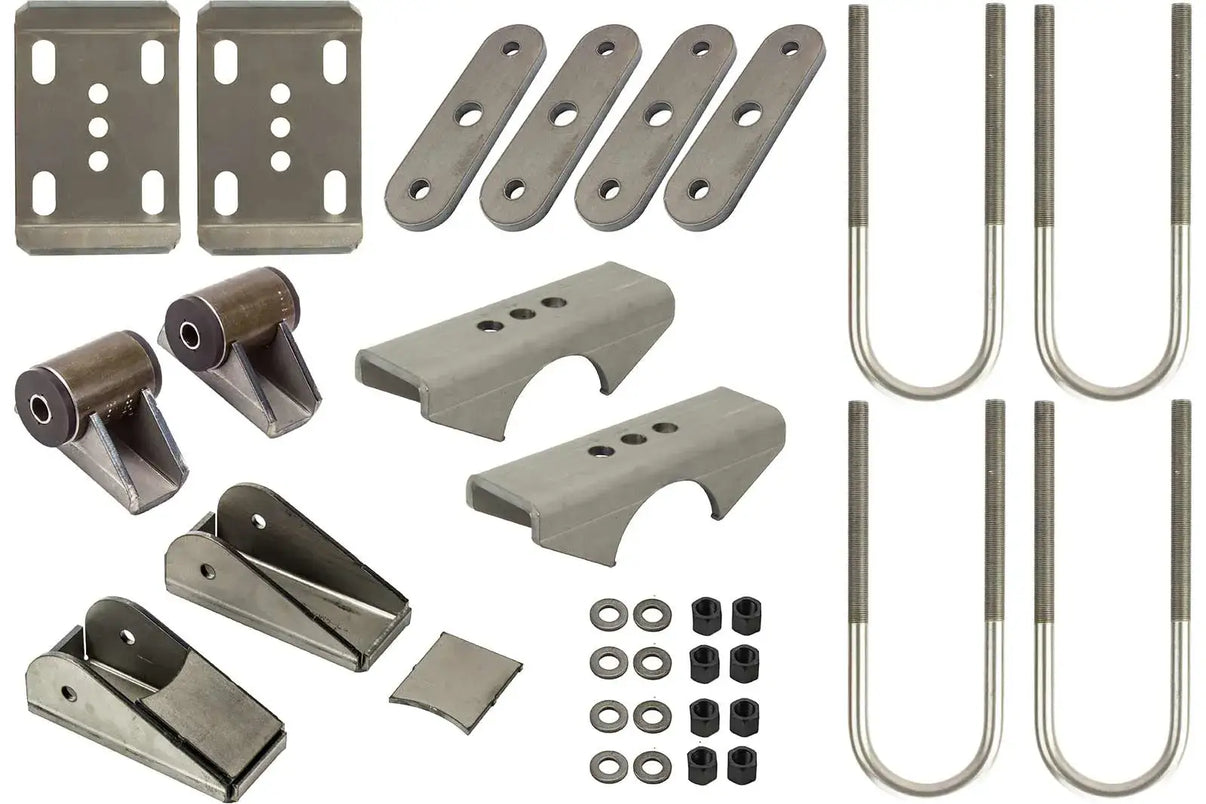

Kit Includes

• 2 spring plates for chosen axle tube and 2.5" wide springs
• 2 spring perches for chosen axle tube and 2.5" wide springs
• 2 Chevy 63" frenched leaf spring hangers
• 1 pair Way Back shackle hangers with bushings
• 4 U-bolts (10" x 5/8" x chosen axle tube size) with hardware
• 2 grade 8 bolts (9/16" x 4.5") with Nylock nuts for spring hangers
• 4 grade 8 bolts (9/16" x 5") with Nylock nuts for shackle hangers
• 4 shackles at chosen length, drilled for 9/16" (5" standard)

Note

When installing urethane bushings, remove all old rubber and shells, clean spring eyes and brackets, and apply grease to all contact surfaces (bushing I.D., O.D., flanges, and sleeves) before assembly.
