KC300x Stage 2 Turbo (63/73) - 7.3 POWERSTROKE (E99) Supports: Up to 205cc/30% injectors 100% drop in turbo (no modifications required) 63mm 7x7 SXE style compressor wheel with extended tip...
63mm 7x7 SXE style compressor wheel with extended tip technology
73mm SXE style turbine wheel
4" ported compressor housing with drilled anti-surge for high flow
High Flow Non-EBPV outlet flange
Adjustable Wastegate Actuator for increased boost control
Upgraded 360 Thrust Journal Bearing Design
Comes with all gaskets and o-rings to install
Comes with new 4" intake boot
Description:

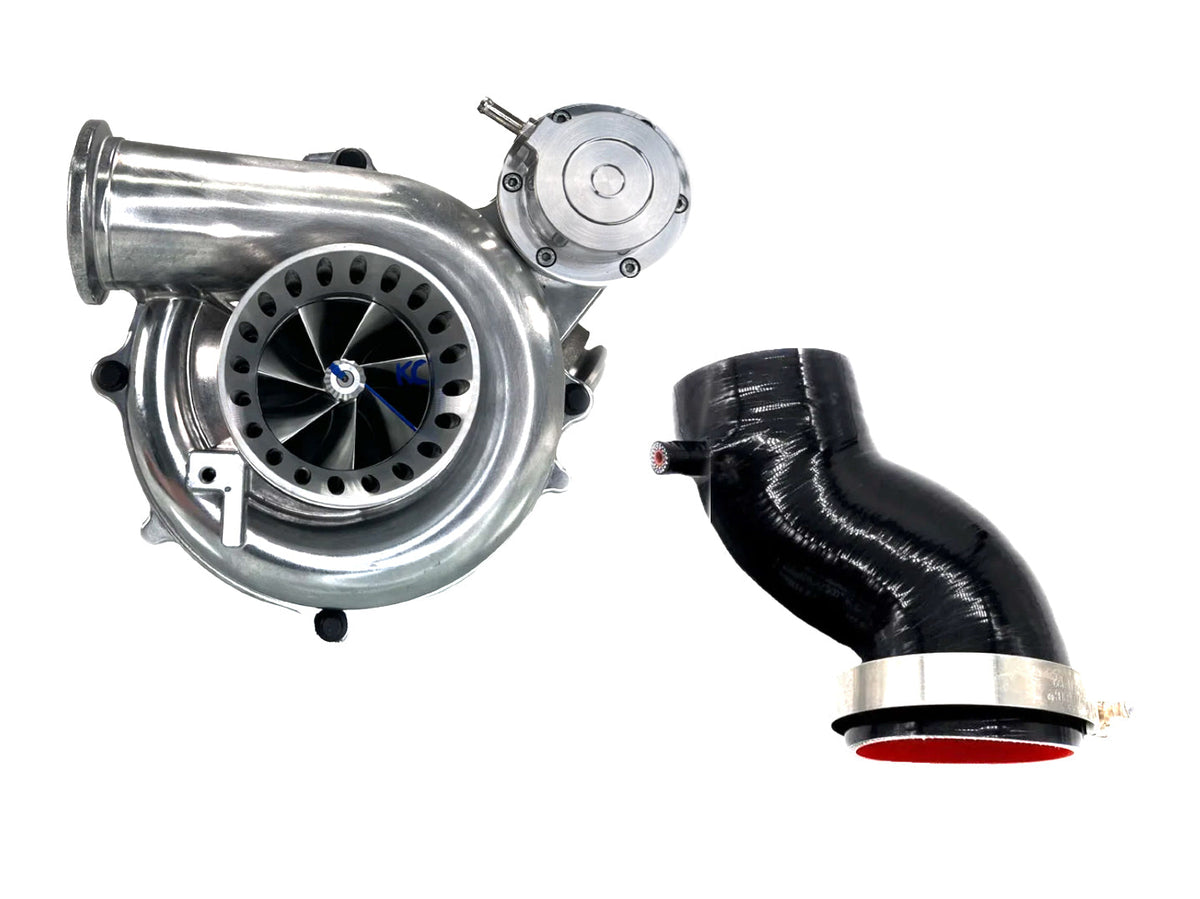

Improve your 7.3 Powerstroke engine's performance with the KC300x Stage 2 63/73 Gen 2 Turbo. This turbo features a 4" ported housing with drilled anti-surge for better flow, a 63mm 7x7 SXE style compressor wheel with extended tip technology, and a 73mm SXE style turbine wheel. The KC300x is a reliable journal bearing drop in turbo perfect for increasing your 7.3 Powerstroke's performance.
This turbo will surprise you at how much it will wake up your 7.3! We have torture tested it for longevity, proven its capability on the dyno, and at the Race Track. For dedicated tow rigs and daily drivers, the .84 A/R Housing provides a quicker spool and cooler EGT's below 3000 RPMs.
EXHAUST BRAKES: We get asked a lot about exhaust brakes and if they work with our turbos, these will retain the OEM feature if the vehicles calibration allows and is setup for it. We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues. These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking. This can be hard on a turbo and motor and is not recommended.
**These turbos are designed to fit directly in 7.3 equipped pick-up trucks. Although these turbos can drop into 7.3 equipped Vans, you will need to modify the turbo intake boot and down-pipe for proper fitment**
