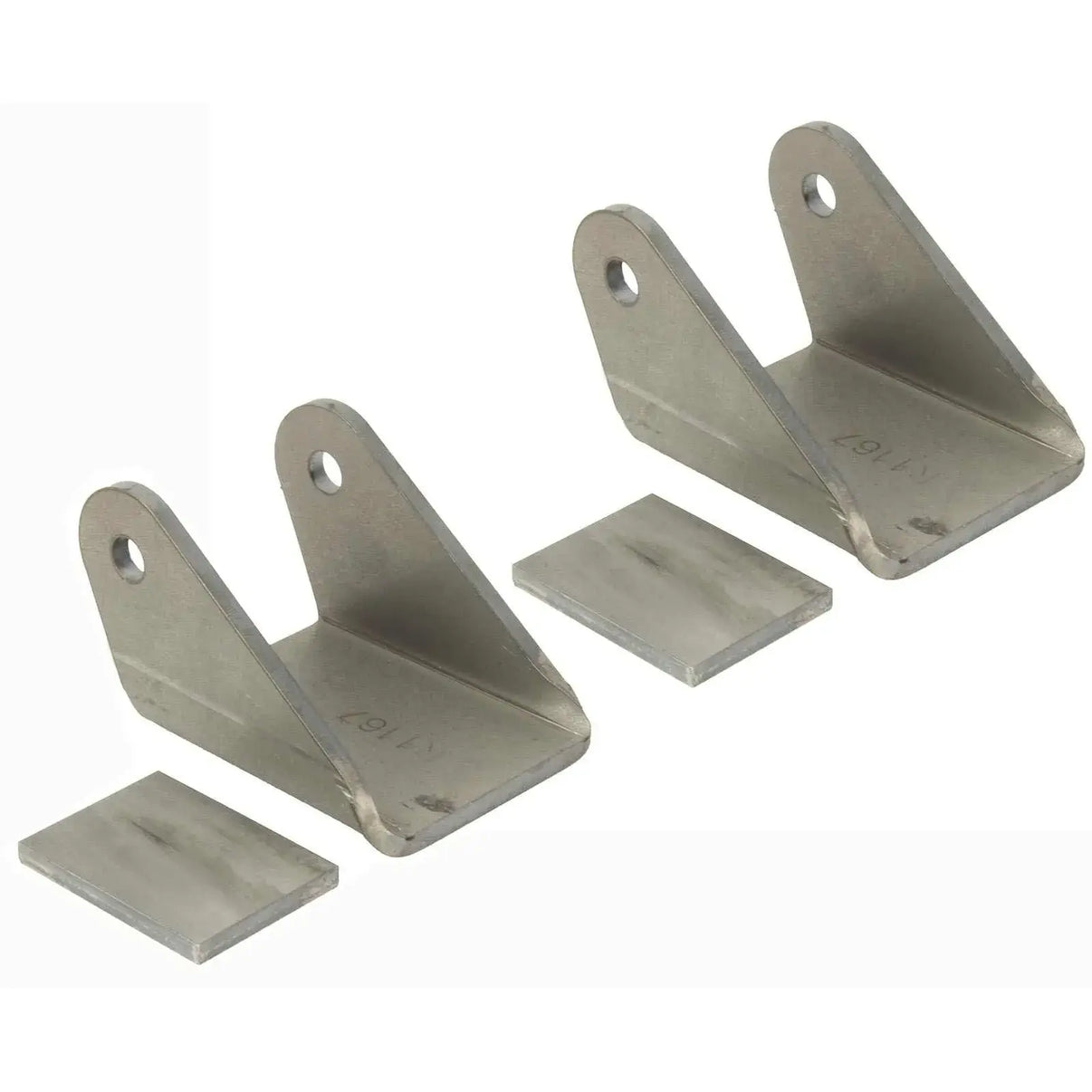

Leaf Spring Hanger with 2.75" Inner Mounting Width
Heavy-duty spring hanger for 2.5" wide leaf springs with narrow bushings.
This leaf spring hanger is designed for 2.5" wide springs but with a 2.75" inner width to accommodate narrow bushing shoulders. Built with an added ramp plate for extra rigidity, the design can also serve as a skid surface when oriented forward or backward. The spring pin is aligned with the leading edge of the bracket, allowing you to extend it past the frame for an easy 1"+ wheelbase stretch if desired.
Strong, versatile, and simple to weld in, these hangers can be used when mounting 2.5" springs on just about any vehicle. Sold in pairs.
Key Features:
Part Number: R1167
Sold in pairs
2.75" inner mounting width
Works with 2.5" wide leaf springs with narrow bushings
1/2" spring bolt hole
Ramp plate adds rigidity and doubles as a skid
Spring pin aligned with bracket edge for easy wheelbase stretch
What's Included:
(2) Leaf spring hangers with 2.75" inner width
Note:
Ships raw steel. Requires welding. Clean and coat after install to prevent corrosion.
