Leaf Spring Hangers for 3.0" Inner Diameter Heavy-duty hangers for 2.75" wide leaf springs with large 3.0" OD bushings. These spring hangers are built for 2.75" wide leaf springs that...
Heavy-duty hangers for 2.75" wide leaf springs with large 3.0" OD bushings.
These spring hangers are built for 2.75" wide leaf springs that use large 3.0" OD bushings. With a 3.0" inner mounting width, they provide the clearance needed for oversized bushings while maintaining a strong, reliable mount. Each hanger features a built-in ramp plate for added rigidity and rock protection, which can also act as a skid surface on the trail.
The spring pin hole is aligned with the leading edge of the bracket, making it possible to extend the hanger past the frame for an easy 1"+ wheelbase stretch. Designed for versatility, they can be mounted facing forward or rearward depending on your build needs. Sold in pairs.
Key Features:
Part Number: R1168
Sold in pairs
3.0" inner mounting width
Designed for 2.75" wide leaf springs with 3.0" OD bushings
9/16" spring bolt hole
Ramp plate adds strength and doubles as a skid
Spring pin aligned with bracket edge for optional wheelbase stretch
What's Included:

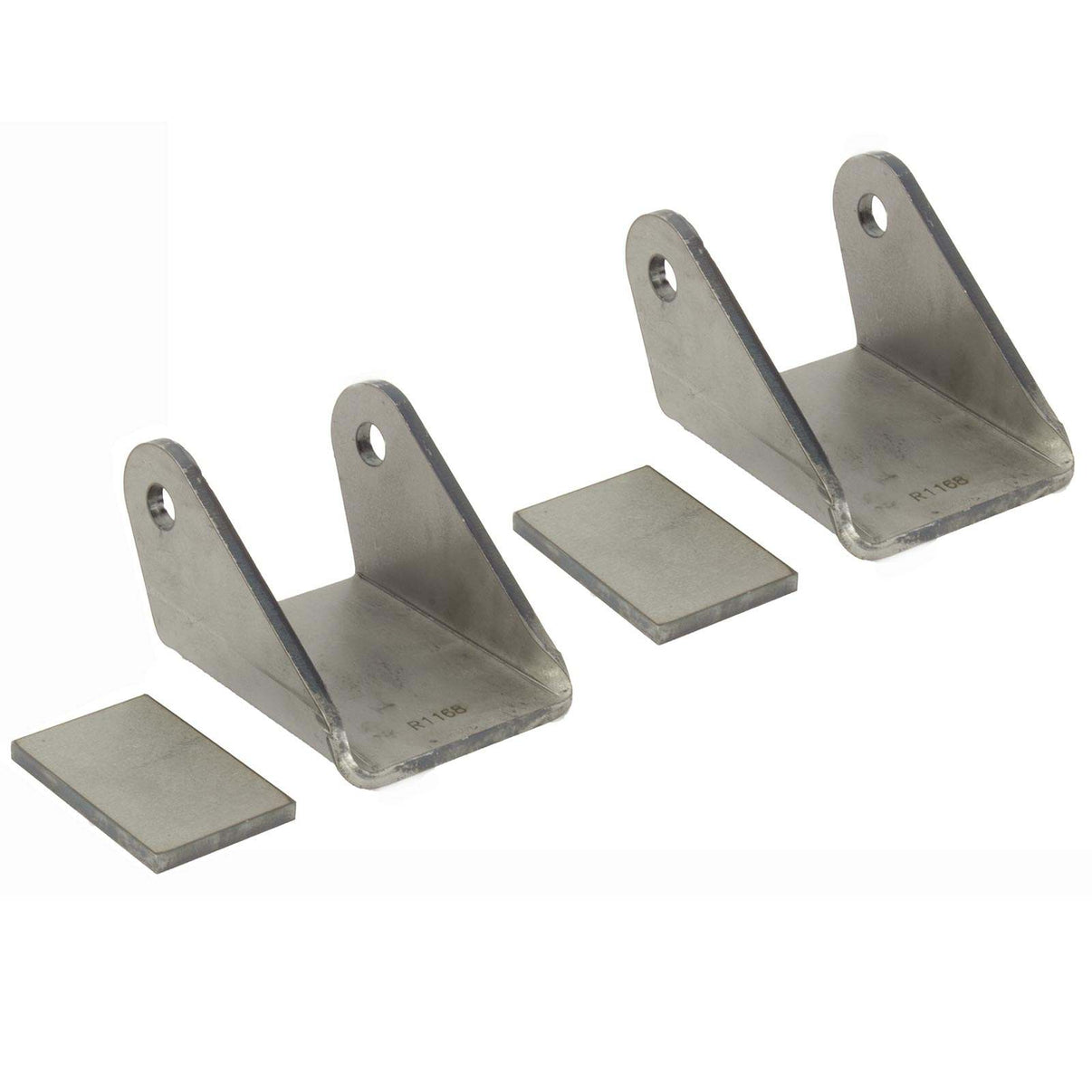

(2) Leaf spring hangers – 3.0" inner diameter
Note:
Ships raw steel. Requires welding. Clean and coat after install to prevent corrosion.
