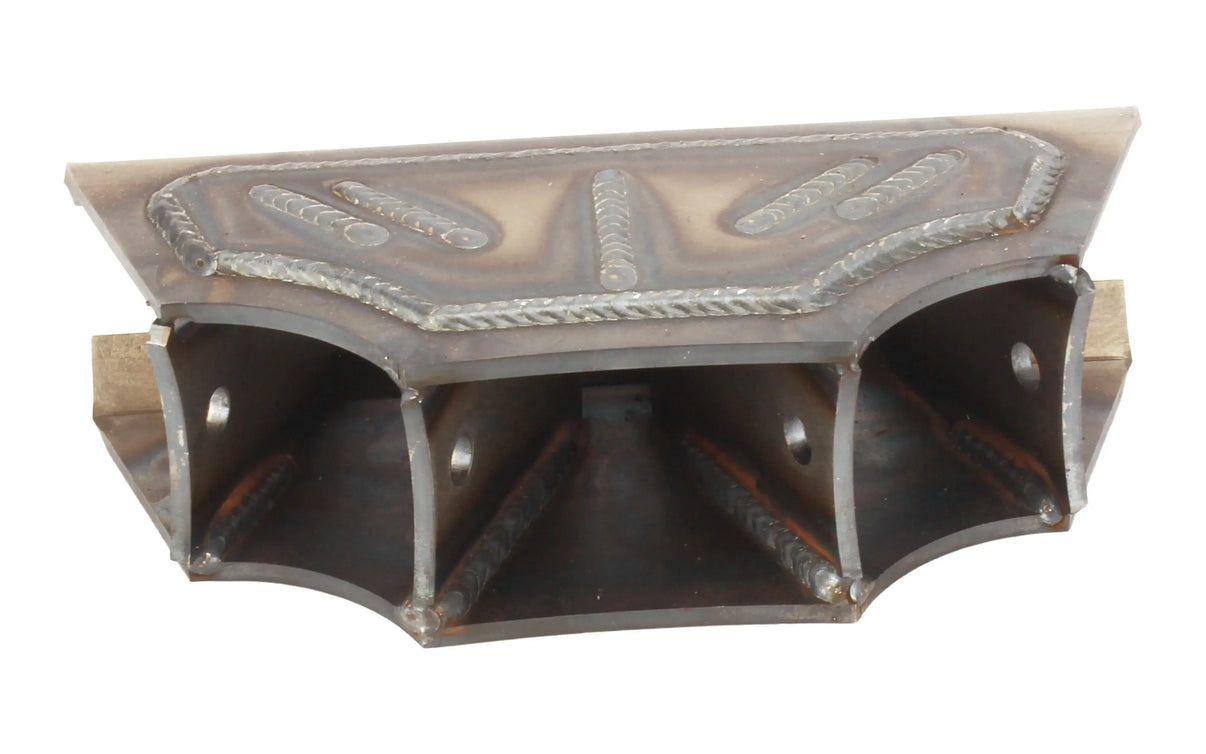

Lower Triangulated 4 Link Bracket Heavy-duty lower link brackets built from 1/4" steel with added reinforcement. Designed for maximum strength, these lower triangulated 4 link brackets are made from solid...
Heavy-duty lower link brackets built from 1/4" steel with added reinforcement.
Designed for maximum strength, these lower triangulated 4 link brackets are made from solid 1/4" steel—never 3/16". Positioned at the bottom of the suspension, they’re built to take constant abuse from rocks and trail impacts. To further extend their life, each bracket includes a reinforcement skid plate that prevents wear from dragging across obstacles.
We also added front reinforcements that tie the top and bottom together, absorbing the first impact so the crossmember stays protected. These brackets are built in a 2 5/8" width to fit standard joints, with a 9/16" hole that can be drilled larger if needed. They’re cut for 1.75" tubing, and we recommend using a stout crossmember with at least 1/4" wall thickness. Brackets are shipped unwelded for custom placement.
Key Features
Part Number: R1402
Constructed from 1/4" steel for maximum strength
2 5/8" width to fit standard joints
9/16" bolt hole (easily drilled larger)
Cut for 1.75" tube—recommended 1/4" wall crossmember
Includes skid reinforcement and front tie-in reinforcements
Notes
Comes unwelded—welding is required for installation.
Not recommended for use with smaller joints; built for heavy-duty applications.
Crossmember must be strong enough to handle heavy impacts.
