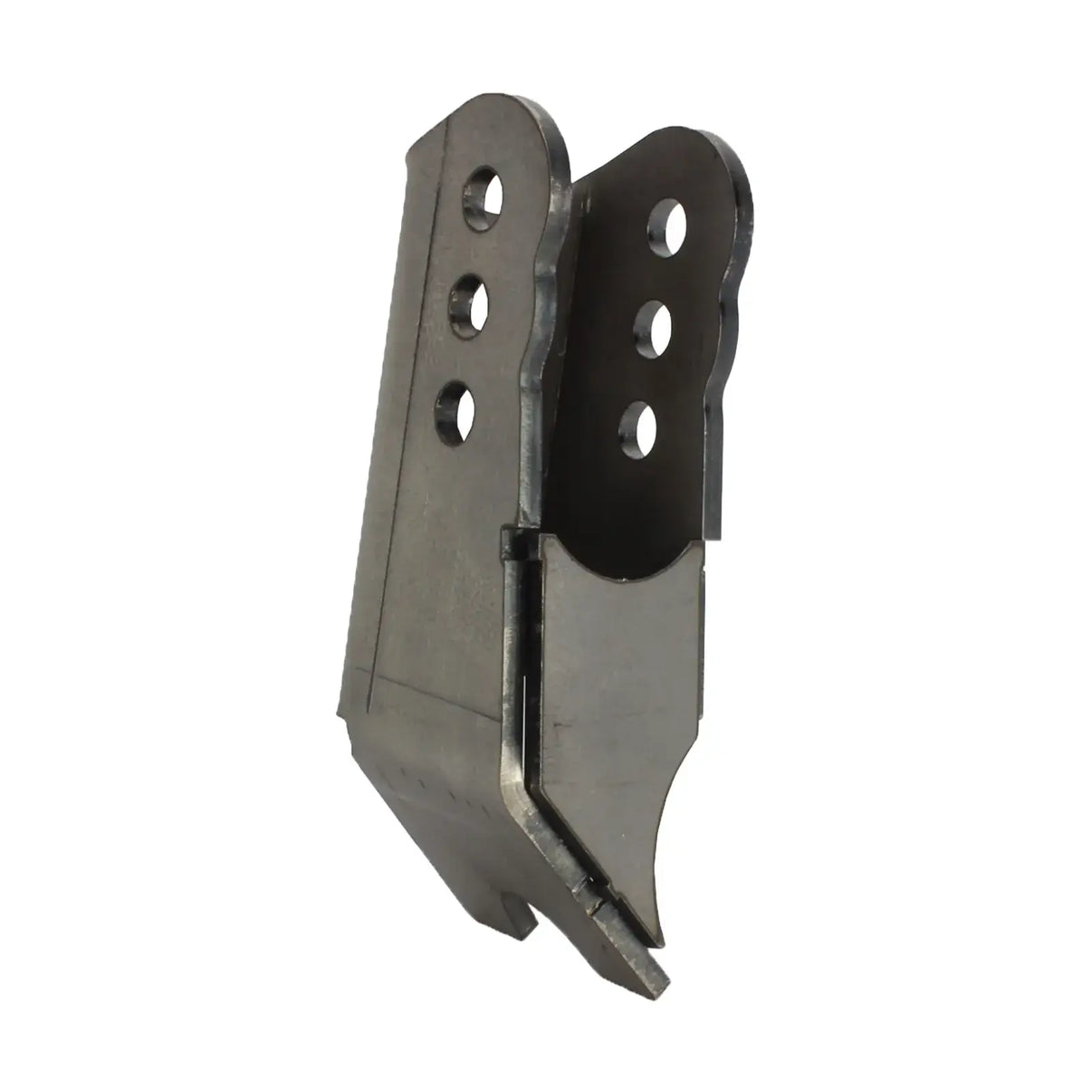

Offset Axle Panhard Bracket Heavy-duty offset panhard bracket with multiple mounting options. This offset panhard/track bar bracket provides three mounting positions at 4", 5", and 6" from axle center, giving...
Heavy-duty offset panhard bracket with multiple mounting options.
This offset panhard/track bar bracket provides three mounting positions at 4", 5", and 6" from axle center, giving flexibility for fine-tuning suspension geometry. Designed to fit a 3" axle tube, it can also be modified to work with other axle tube sizes as needed. Built from 1/4" steel plate, it includes a reinforcement plate for added strength once welded in place.
The bracket has a 2" inside width and comes drilled for 9/16" bolts, making it compatible with standard suspension hardware. Sold individually, it's built for durability and customization in demanding suspension setups.
Key Features
Part Number: R1173
Offset design with 3 mounting positions (4", 5", 6" from axle center)
Cut for 3" axle tubes (modifiable for other tube sizes)
2" inside width, drilled for 9/16" bolts
Made from 1/4" steel plate
Reinforcement plate included for welding
Sold individually
What's Included
(1) Offset Axle Panhard Bracket
(1) Reinforcement Plate
Notes
Welding required for installation.
Designed for 3" axle tubes—modification may be needed for other diameters.
