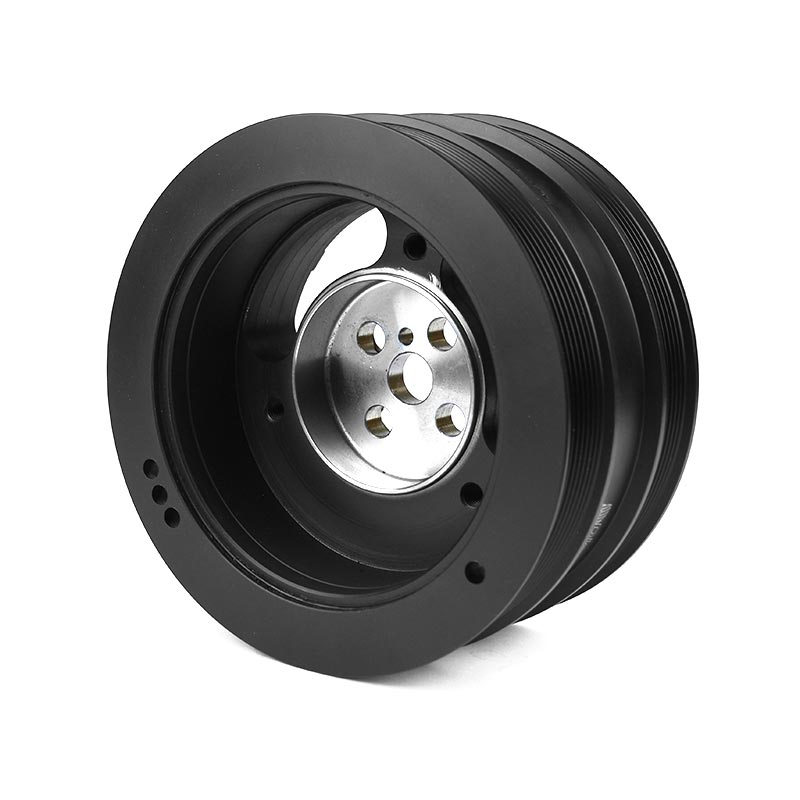

Performance Balancer Series - Diesel Performance Harmonic Balancer 08-10 Ford 6.4L Powerstroke XDP Xtreme Diesel Performance

The XDP Performance Balancer Series - Diesel Performance Harmonic Balancer XD720 is an ideal upgrade for your high-performance Ford 6.4L Powerstroke. High-performance diesel engines require a high-performance balancer. Upgrading the harmonic balancer (also known as a crankshaft vibration damper) when you increase your diesel's power output is vital for prolonged engine life.

A performance balancer can be essential for engines with increased horsepower, torque, or RPM, as they are better designed to handle more extreme torsional vibrations and help prevent potential engine damage.

The Performance Balancer Series from XDP are designed to withstand the demands of modified diesel engines. Constructed with a Billet Steel Ring and Hub, the XDP Performance Balancers use an ultra-reliable pressure-bonded technology to bond the steel hub to the steel inertia ring.

These balancers are engineered to meet SFI 18.1 specifications and are approved for race use. In addition, the balancers are dynamically balanced for smooth operation and include easy-to-read computer etched timing marks.

Features:

• Billet Steel Ring And Hub Construction
• Engineered To Meet SFI 18.1 Standards
• Easy To Read Computer Etched Timing Marks
• Pressure Bonded Technology To Ensure Secure Fit Of Inertia Ring

XD720 Harmonic Balancer Specifications:

• Timing Marks: Yes
• Overall OD (in): 8.071
• Nose OD (in): 0
• Overall Width (in): 4.056
• Crank Bore (in): 2.540
• Ring Width (in): 4.065
• Bolt Holes: 4
• Counterweight Balance: Hub weighted
• No. of Integrated Pulleys: 2
• Pulley Type 1: Serpentine
• Pulley Grooves 1: 6
• Pulley Type 2: Serpentine
• Pulley Grooves 2: 8
• Pulley OD 1 (in): 7.796
• Pulley OD 2 (in): 7.796
• Crank Trigger/Exciter Plate: No
