Each PERRIN oil cooler uses a Perrin designed core which maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with airway corrugations providing optimum heat transfer, while the oil passages use "turbulators" to break down boundary layer effects in the oil flow. Setrab Oil Coolers employ an in-line turbulator to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with the least pressure lost. The turbulators are fully brazed to the entire internal length of the tube resulting in zero heat transfer barrier and high strength.
Why You Want This
In racing conditions engine oil temperature skyrockets. This causes decreased engine performance and reduces the oil's ability to properly lubricate. A well-designed engine oil cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life. Most setups can see a drop of approximately 15°-20°F at 7000 RPM.
Heat Exchanger
Using a bar and plate core maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with in-line turbulators to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with low pressure lost.
Mounting Brackets
The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.
Construction Details:
Oil Cooler Core Dimensions: 9.5" x 4.75" x 2.2"
Core Delta PSI: 3.0/3.5 PSI
Core BTU/hr Range: 22,000-29,000
Additional Oil Required: 1 quart
Mounting Brackets: 6061 T6 aluminum
Required Hose Size: -10

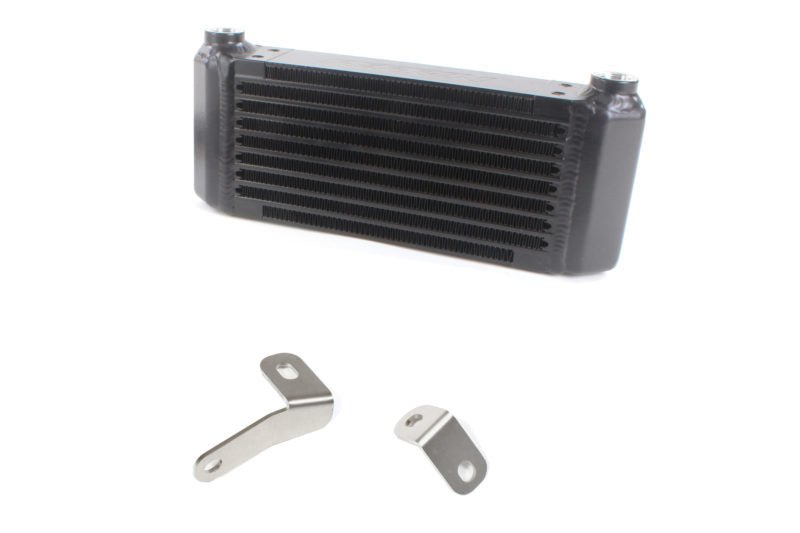

This kit does not include lines and will only contain the following:
