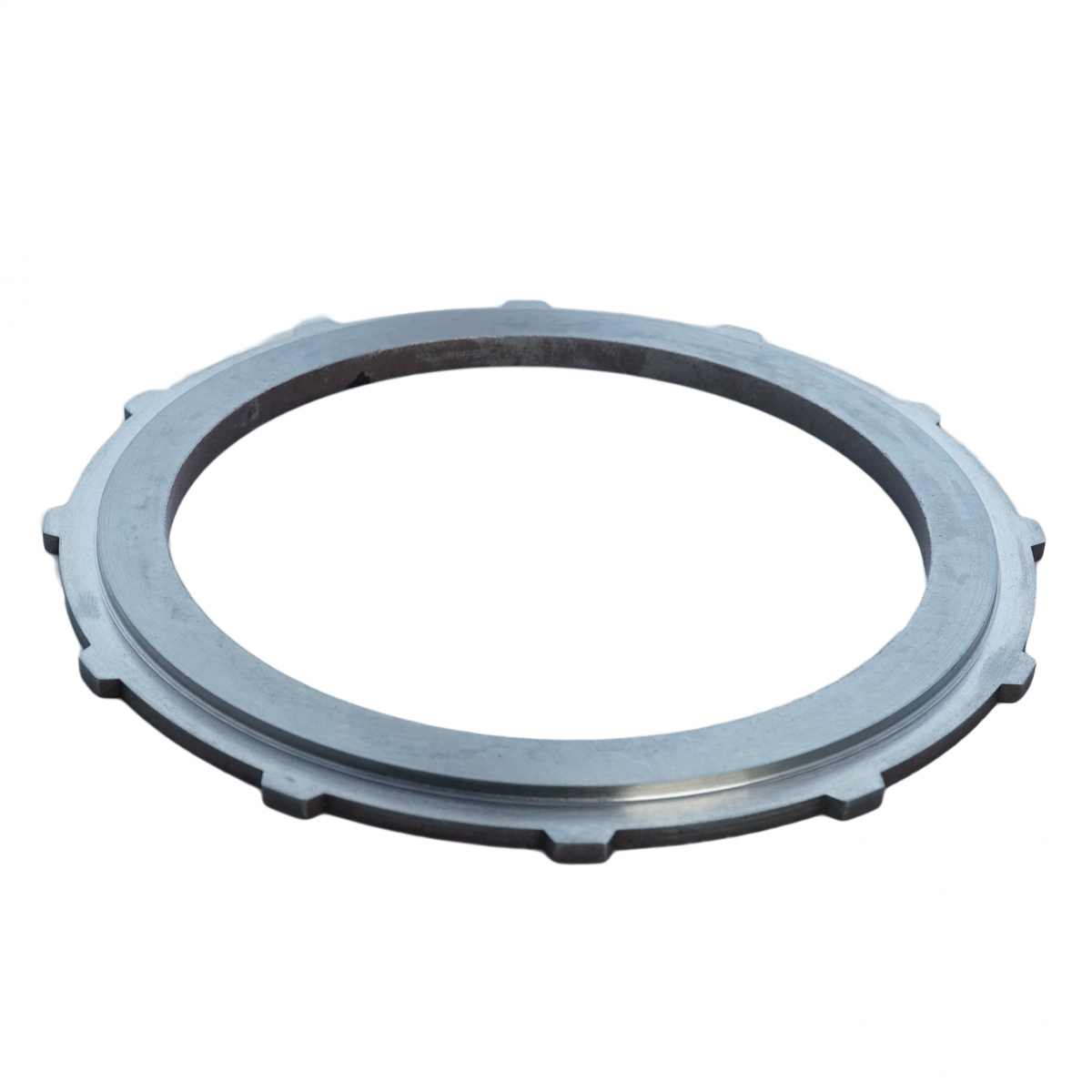

The Power Driven Machined Stepped 3rd/Direct Reaction Plate allows for more third-gear direct clutches. Required to fit (6) GPZ clutches in 47RH or 47RE drum and up to (7) GPZ...
The Power Driven Machined Stepped 3rd/Direct Reaction Plate allows for more third-gear direct clutches. Required to fit (6) GPZ clutches in 47RH or 47RE drum and up to (7) GPZ clutches in 48RE drum.
Note: Some early 47RH and 47RE 3rd/direct drums have a taller aluminum apply piston and will require a new thin .062" snap ring to ensure that adequate clutch clearance is maintained. A minimum of .012" per clutch and a maximum of .020" per clutch is recommended for most applications.
Upgrade your transmission system with the machined stepped 3rd/direct reaction plate for increased clutch capacity and improved performance.
Compatible with:
1994 Dodge 5.9L 12v Cummins
1995 Dodge 5.9L 12v Cummins
1996 Dodge 5.9L 12v Cummins
1997 Dodge 5.9L 12v Cummins
1998 Dodge 5.9L 12v Cummins
1998.5 Dodge 5.9L 24v Cummins
1999 Dodge 5.9L 24v Cummins
2000 Dodge 5.9L 24v Cummins
2001 Dodge 5.9L 24v Cummins
2002 Dodge 5.9L 24v Cummins
2003 Dodge 5.9L 24v Cummins
2004 Dodge 5.9L 24v Cummins
2004.5 Dodge 5.9L 24v Cummins
2005 Dodge 5.9L 24v Cummins
2006 Dodge 5.9L 24v Cummins
2007 Dodge 5.9L 24v Cummins
*May not work for all builds due to other engine/vehicle modifications
