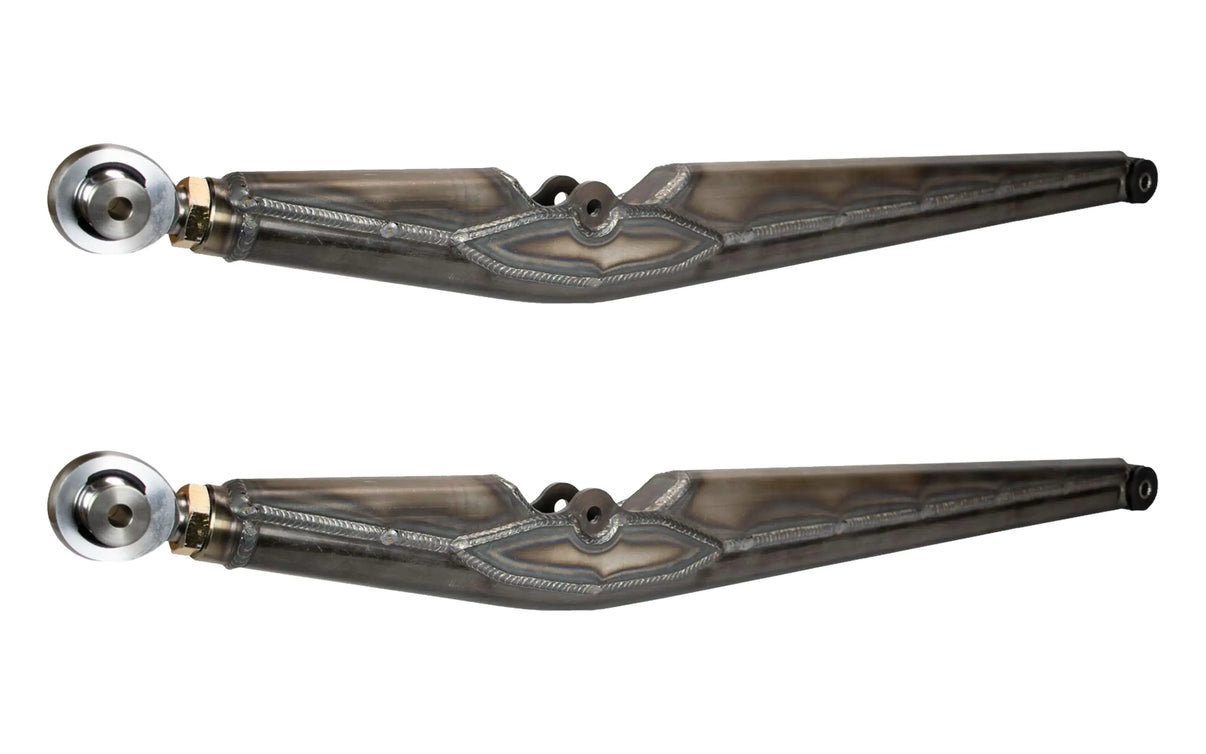

RuffStuff URC Single Shock Trailing Arms, Pair Heavy-duty trailing arms with 1-piece bent plate design for maximum strength. These trailing arms are built for serious off-road performance where strength and...
Heavy-duty trailing arms with 1-piece bent plate design for maximum strength.
These trailing arms are built for serious off-road performance where strength and reliability matter most. The key to their durability is the 1-piece main plate design that's bent 4 times instead of being welded together from multiple pieces. This approach gives you maximum strength, minimal welding, reduced warpage, and easier assembly. Fewer welds mean fewer potential failure points and a cleaner, stronger finished product.
Each arm measures 40" eye to eye and features a 2" x .25" wall DOM main tube for exceptional rigidity under load. The frame side uses 3" wide polyurethane bushings for smooth articulation and long-lasting performance, while the axle side gets our proven 1-1/4" heim joints for the strength and adjustability needed for serious wheeling. Integrated shock mounts feature 1/2" bolt holes positioned for 1.5" misalignment width, giving you flexibility in shock mounting options. Each welded arm weighs approximately 32.5 lbs.
Key Features
Part Number: R1983
Length: 40" eye to eye
Main Tube: 2" x .25" wall DOM
Main Plate: 1/4" thick, 1-piece design bent 4 times for strength
Frame Mount: 3" wide polyurethane bushings
Axle Mount: 1-1/4" heim joints
Shock Mounts: 1/2" bolt holes set for 1.5" misalignment width
Weight: 32.5 lbs per arm (welded)
Design: Minimal welding reduces warpage and failure points
What's Included
2 - Trailing arms (pair)
3" wide polyurethane bushings (frame side)
1-1/4" heim joints (axle side)
Notes
Sold as a pair
Professional installation and welding required
1-piece bent plate design minimizes welding and warpage for superior strength
