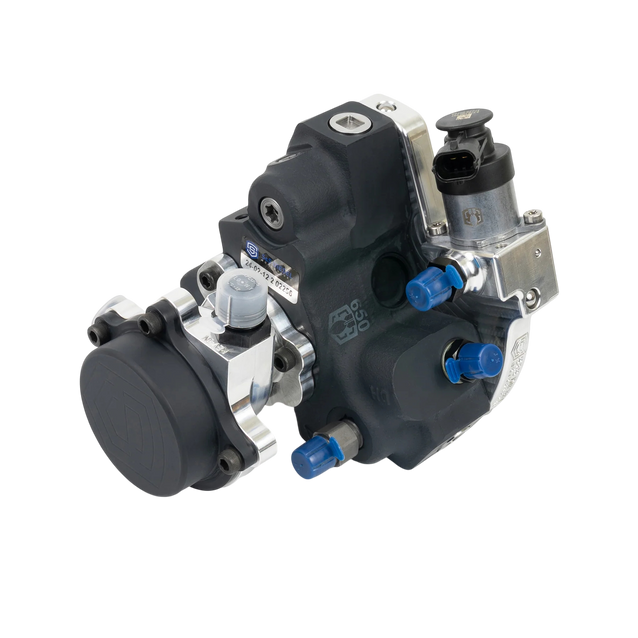

The Ordnance 650 is designed as a max-effort, max-RPM competition fuel pump, delivering an impressive 650 L/H maximum flow at 6,000 RPM. In addition to increased flow at high RPM, they’ve reduced return flow by 50% and lowered the required supply pressure by 30%.
This pump begins as a brand-new Bosch-based CP3, modified by S&S Diesel Motorsport, and receives a durable Cerakote finish to protect against corrosion. It’s assembled with a new flange featuring their gForce block now integrated, which eliminates g-force effects during launch and simplifies the design.
-
Protrusion from Front Cover (Gear Pump Delete) 107 mm (4.21 in)
-
Displacement 1,850 mm3/rev
-
Flow Rate 650 L/h (2.86 GPM)
-
Max Speed 8,000 RPM (tested) 7,000 RPM (recommended)
-
Fuel Temperature -40°C (-40°F) to 70°C (158°F)
-
High-Pressure Outlet Port M14x1.5(M)
-
Feed and Return Ports M12x1.5(F)
-
Recommended Supply Pressure 9.65 bar (140 psi)
-
Required Supply Flow (6,000 RPM) 820 L/h (3.61 GPM)
-
Required Supply Flow (850 RPM) 120 L/h (0.53 GPM)
