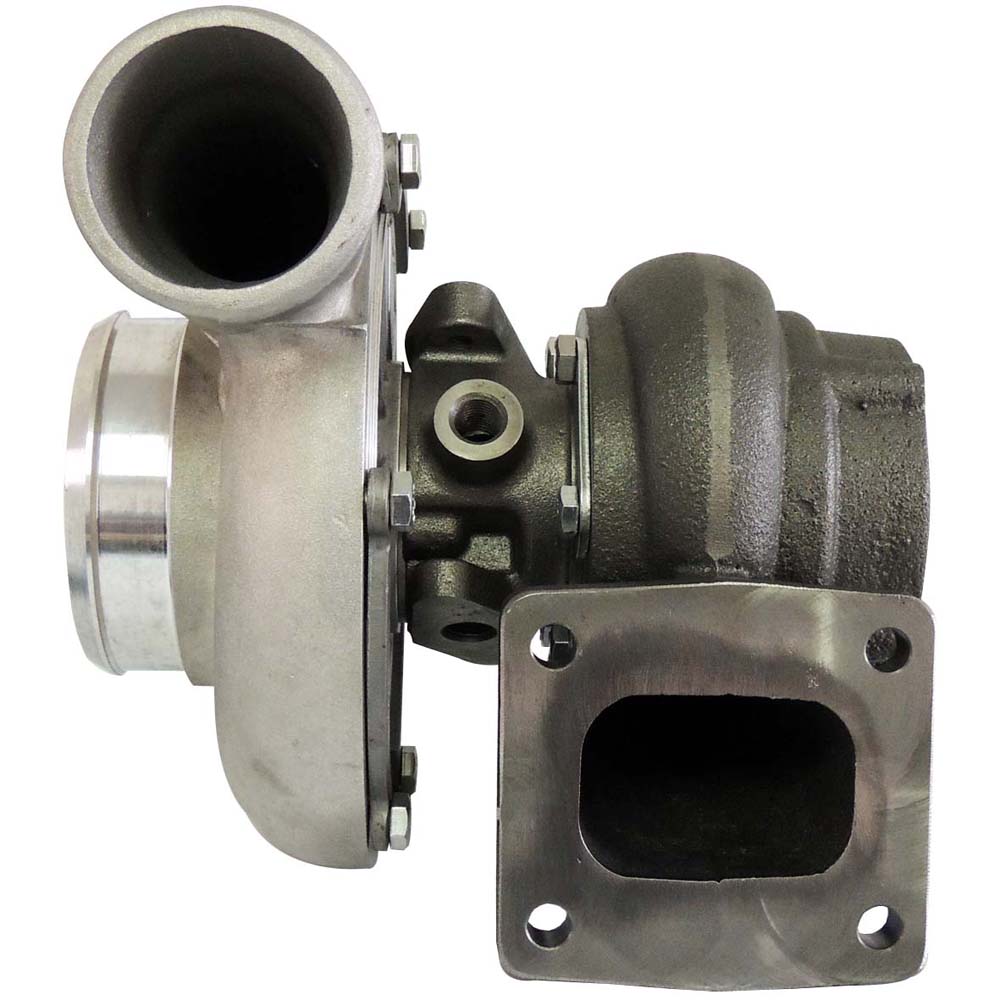

T3/T4 turbocharger 2.0 - 4.5L displacement
350-600hp range
Compressor wheel: 58.75mmx87.8mm exclusively developed by SPA Turbo billet aluminum with EXTENDED TIP concept, which increases the maximum flow of the compressor, with minimal increase of mass, guaranteeing greater efficiency and flow in relation to the competitors of the market.
Turbine wheel: 64mmx76.1mm.
Compressor housing: .70 anti-surge. 4" inlet - 2 1/2" outlet. Special design Turbo SPA that optimizes volume and airflow in conjunction with billet compressor wheel.
Turbine housing:Â T4 A/R .68
Lubrication: oil.
Cooling: water and oil.
Journal bearings (360 degree thrust bearings).
350-600hp range
Compressor wheel: 58.75mmx87.8mm exclusively developed by SPA Turbo billet aluminum with EXTENDED TIP concept, which increases the maximum flow of the compressor, with minimal increase of mass, guaranteeing greater efficiency and flow in relation to the competitors of the market.
Turbine wheel: 64mmx76.1mm.
Compressor housing: .70 anti-surge. 4" inlet - 2 1/2" outlet. Special design Turbo SPA that optimizes volume and airflow in conjunction with billet compressor wheel.
Turbine housing:Â T4 A/R .68
Lubrication: oil.
Cooling: water and oil.
Journal bearings (360 degree thrust bearings).
