SPE Motorsport 2015-2019 6.7L Powerstroke Upper Oil Pan Gasket

SPE-S100467

The 2015–2019 6.7L Powerstroke is well known for developing leaks at the upper oil pan. From the factory, these engines rely on RTV silicone to seal the upper oil pan to the block. Over time that silicone breaks down, leading to annoying oil leaks and messy repairs.

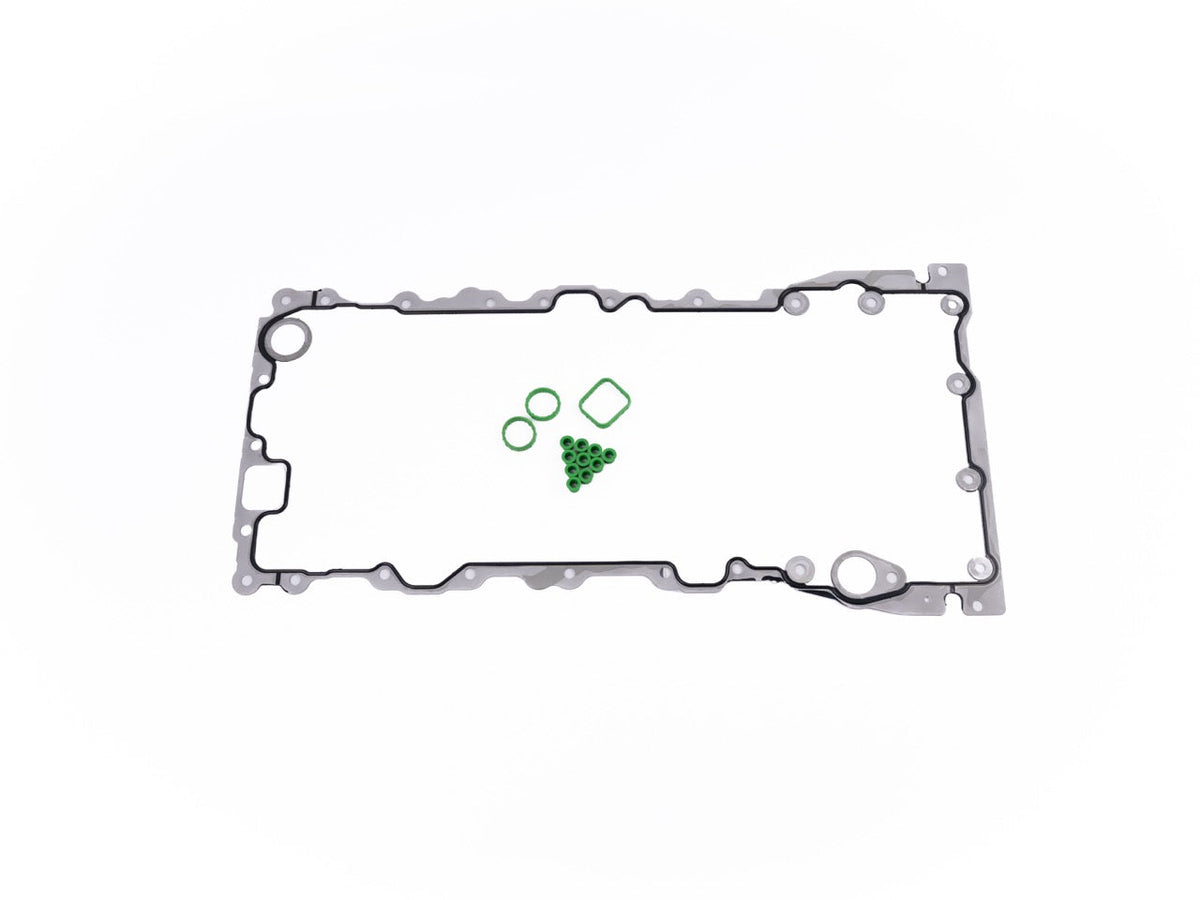

The SPE Motorsport Upper Oil Pan Gasket Kit replaces the factory RTV seal with a modern gasket solution designed to eliminate the problems associated with silicone sealing.

Instead of relying on RTV, this kit uses a bonded nitrile rubber gasket mounted to a rigid aluminum carrier. This design keeps the sealing surface properly located while preventing the gasket from over-crushing during installation. The aluminum framework acts as a crush limiter and gasket retainer, ensuring consistent sealing pressure across the entire pan.

Because the gasket is retained within the aluminum frame, it stays perfectly aligned during installation and cannot shift like traditional long molded gaskets. The result is a more reliable seal and a much cleaner installation process.

The kit also includes all required transfer port gaskets for the oil pressure and suction passages that run through the upper pan, along with alignment dowels that hold the gasket in position and assist with installation.

By eliminating the need to run RTV around the entire pan, installation is significantly cleaner and easier — especially when working under the truck. Only small dabs of RTV are required at the front and rear cover corners, just like most modern gasketed oil pan designs.

If you're dealing with a leaking upper oil pan or simply want to eliminate the factory silicone setup, this kit provides a clean, reliable solution without needing to replace the entire pan.

Features & Benefits:

• Eliminates factory RTV silicone sealing
• Bonded nitrile gasket with rigid aluminum carrier
• Built-in crush protection for consistent sealing
• Prevents gasket movement during installation
• Cleaner installation with minimal RTV required
• Includes suction and pressure transfer port gaskets
• Alignment dowels help locate the gasket and hold bolts during installation
• Designed specifically for the 2015–2019 6.7L Powerstroke upper oil pan

Vehicle Fitment

2015–2019 Ford F250 6.7L Powerstroke
2015–2019 Ford F350 6.7L Powerstroke
2015–2019 Ford F450 6.7L Powerstroke
2015–2019 Ford F550 6.7L Powerstroke
