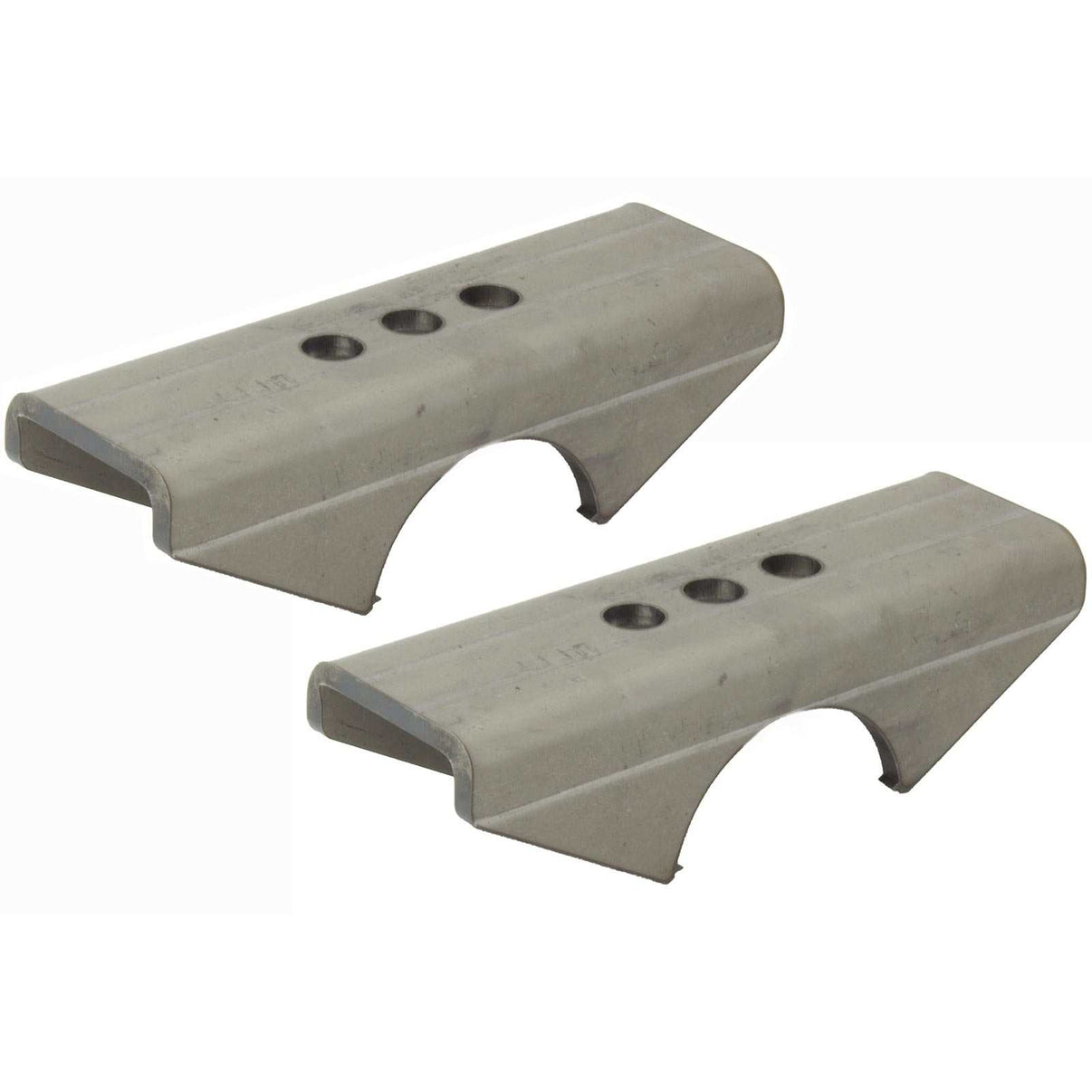

Spring Over Axle Perch Pair, 3.0" Axle Tube 2.75" Wide

Spring Over Axle Perch Pair, 3.0" Axle Tube 2.75" Wide

Precision-built perches for spring-over conversions.

These CNC laser-cut spring perches are engineered for spring-over-axle conversions on 3.0" axle tubes. Built from 1/4" HR steel and precision-formed on a 290-ton brake, they provide a rock-solid platform for your leaf springs. The 8" length helps control axle wrap while three spring pin mounting options let you fine-tune your wheelbase.

Each perch is designed for 2.75" wide springs and fits 3.0" axle tubes perfectly. Can be easily adjusted up or down 0.25" for different tube sizes with a grinder. CNC laser cut for precision fitment and consistent quality.

Key Features

• Part Number: R1222
• Fitment: 3.0" axle tubes with 2.75" springs
• Material: 1/4" HR steel, CNC laser cut
• Dimensions: 8" length, 2.75" width, 3.0" tube diameter
• Special design features: Three spring pin positions for wheelbase adjustment

What's Included

• 2x Spring perches (pair for one axle)

Notes

• For spring-over-axle applications only
• Welding required for installation to axle tube
