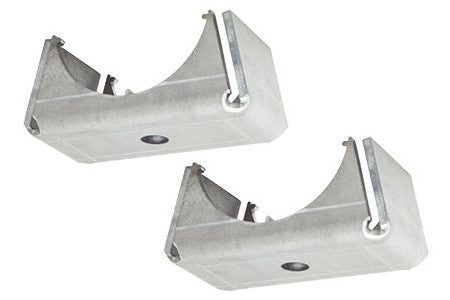

Spring Under Axle Perches for 3", 3.25," 3.5" Axle Tubes

Spring Under Axle Perches for 3", 3.25," 3.5" Axle Tubes

Heavy-duty perches built for extreme flex.

These fully-boxed spring perches are engineered specifically for spring-under-axle applications where maximum flex is critical. Born from desert racing needs, they're built strong enough to handle extreme suspension travel while staying compact at just 4 3/4" long to avoid limiting flex. Perfect for high-performance builds where you need bulletproof mounting without compromising suspension movement.

Constructed from 3/16" steel in a fully-boxed design for maximum strength-to-weight ratio. Available for 3", 3.25", or 3.5" axle tubes with 2.5" spring width. CNC precision ensures perfect fitment every time.

Key Features

• Part Number: R1182
• Fitment: 3", 3.25", or 3.5" axle tubes
• Material: 3/16" steel, fully-boxed construction
• Dimensions: 4 3/4" length, 2.5" width, multiple tube diameters
• Special design features: Compact design for maximum flex clearance

What's Included

• 2x Spring perches (pair for one axle)

Notes

• For spring-under-axle applications, also works for extreme travel SOA builds
• Welding required for installation to axle tube
