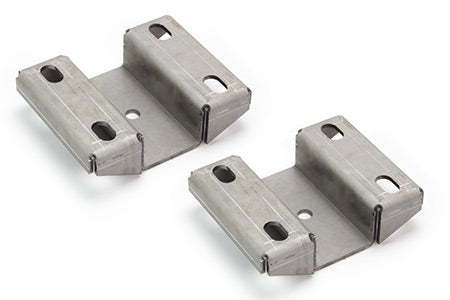

Spring Under U-Bolt Plate Pair Heavy-duty plates for secure spring mounting. These cradle-style u-bolt plates provide a solid foundation for your leaf spring setup while protecting u-bolt threads from dirt...
These cradle-style u-bolt plates provide a solid foundation for your leaf spring setup while protecting u-bolt threads from dirt and rocks. The 1.75" deep design creates a protective pocket that keeps your hardware clean and secure. Perfect for builds where you need reliable spring clamping with added protection from trail debris.
Designed for 2.5" wide springs with a snug fit that prevents the spring from shifting even if the center pin is lost. Compatible with 2.75" to 3.5" axle tubes and requires finish welding of seams and strap plates for complete installation.
Key Features
Part Number: R2198
Fitment: 2.75" to 3.5" axle tubes with 2.5" springs
Material: Heavy-duty steel plate construction
Dimensions: 1.75" deep cradle design, 2.5" spring width
Special design features: Thread protection and snug spring fit
What's Included
2x U-bolt plates (pair)
Notes
Finish welding required for seams and strap plates
